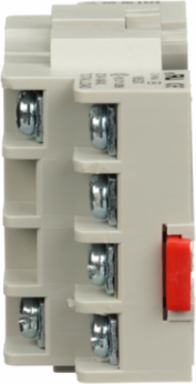

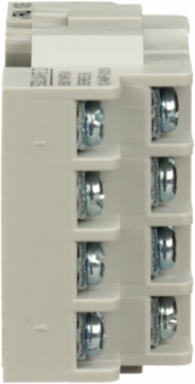

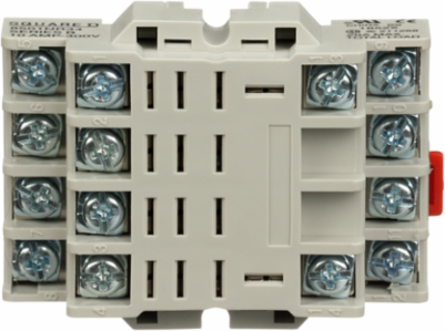

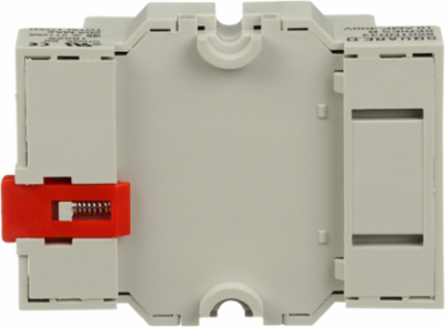

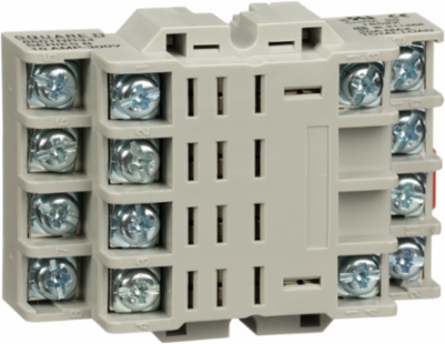

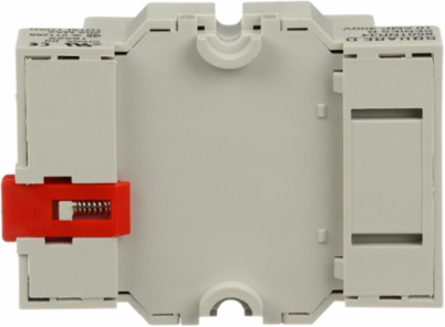

Square D 8501NR34 Relay Socket, 14 Pins, 10A, 300V AC, DIN Rail/Panel Mount
- MPN: 8501NR34
- UPC: 785901137313
- PPN: SCH-8501NR34
CAD
$42.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS44 or 8501RSD44 relay will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- [In] Rated Current
- 10 A 300 V AC
Complementary
- Height
- 69.6 mm
- Electrical Connection
- double tiered screw clamp terminals
- Width
- 50.3 mm
Mounting Supportpanel || DIN rail
Quantity Per Set1
Depth27.7 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
