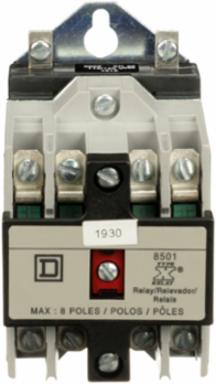

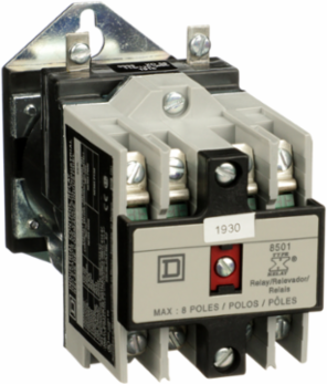

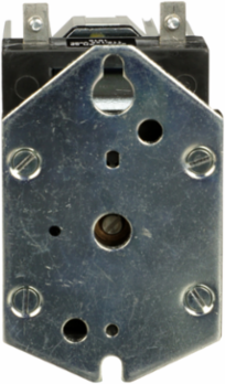

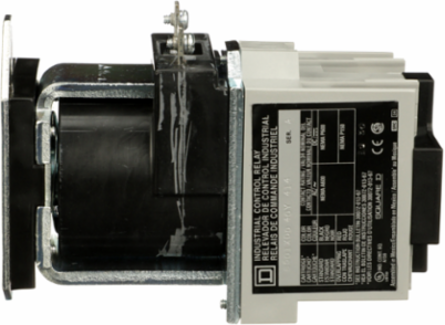

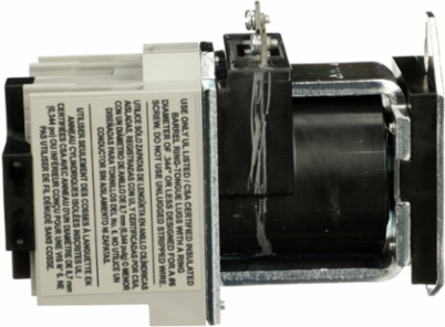

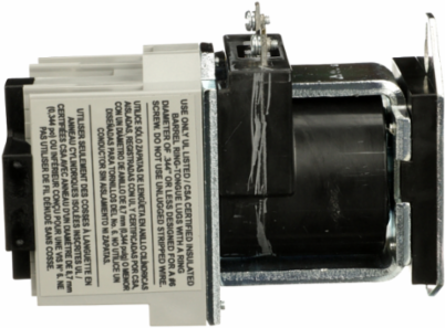

Square D 8501XDO40V62Y414 Harmony Relay, 10A at 600V AC, 115/125V DC, 4NO, 3.56 Inch Tall
- MPN: 8501XDO40V62Y414
- UPC: 785901743385
- PPN: SCH-8501XDO40V62Y414
CAD
$397.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pan head screws so ring tongue terminals can be used. 18 to 12 AWG copper wire can be used with this relay. Relay has a 115/125 VDC replaceable coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.17 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.8...1.1 Uc DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78403 CCN NKCR, CSA LR60905 class 3211 03
- Carbon Footprint Of The Distribution Phase [A4]
- 0.19471, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.38002, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 172 kg CO2 eq., 171.93
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Manufacturing Carbon Footprint
- 9.1566
- End Of Life Carbon Footprint
- 2.6144
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Inrush Power In W
- 18 W
- Operating Time
- 37 ms - pick-up21 ms - drop-out
- Product Or Component Type
- relay
- Relay Type
- control
- Software Version
- v5.9.4
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminals
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US

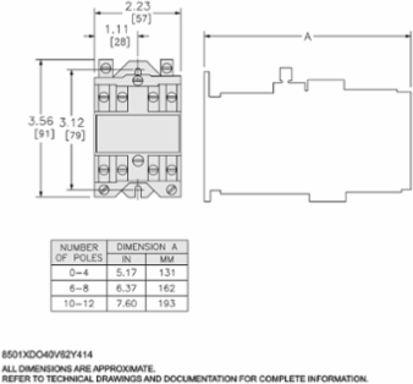

- Height Nominal
- 3.56 in
- [Uc] Control Circuit Voltage
- 115/125 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 9.0432
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 2.5626
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 9.1566
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 2.6144
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 3960.7495
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 2.7127
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3662.9
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -66.713
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.5915
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 188.89
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 110.86
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -91.052
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 4.77
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 147.05
- Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]
- 0.1082
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 9.6006
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 25.418
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.2721
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 6.8557
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 4454.6267
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 2.7164
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 4150.1
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -68.299
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 487.2
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.5856
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 6.8557
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 3953.8895
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 2.7127
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 3662.9
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -67.019
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.1174
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1.0228
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 1.2443
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 11.526
- Water Use (M3 Eq) End Of Life [C1-c4]
- 2.0922
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.6144
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.1566
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Use Carbon Footprint171.93
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge18 AWG...12 AWG copper
Electrical Connectionring tongue
Mounting Supportpanel
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501X
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint184 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %1
Width Nominal2.23 in
Hold-in Power Consumption In W18-18 W
Package Weight(Lbs)1.52 kg
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]171.75
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-3.2422
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]171.93
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-3.2973
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]144.44
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.9568
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]146.74
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]308.75
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2047.3
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-71.788
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.3385
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.3127
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]95.494
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-70.844
Materials For Recycling (Kg) End Of Life [C1-c4]0.9179
Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.2352
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-2.3545
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.8557
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]0.3055
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]149.58
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]4.2403
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]147.99
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.1402
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.2443
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle7.1612
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]0.3055
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]137.58
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.9568
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]146.74
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.1174
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.2214
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]487.2
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.3642
Water Use (M3 Eq) Operational Energy Use [B6]6.1736
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-3.1048
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint184.27573
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
