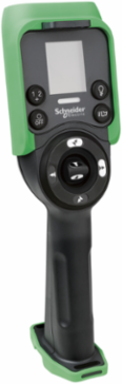

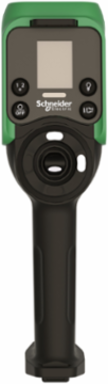

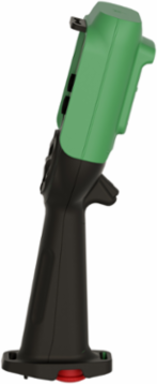

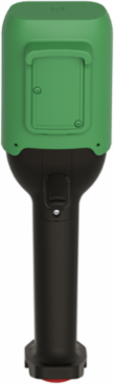

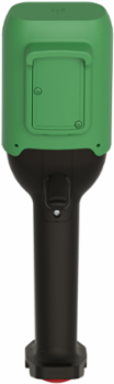

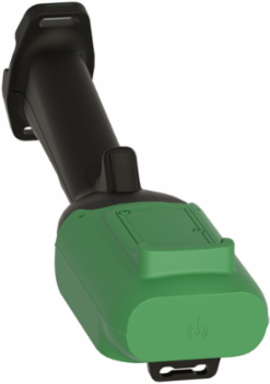

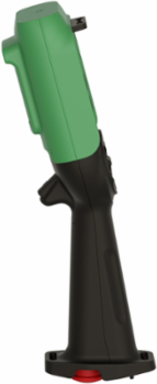

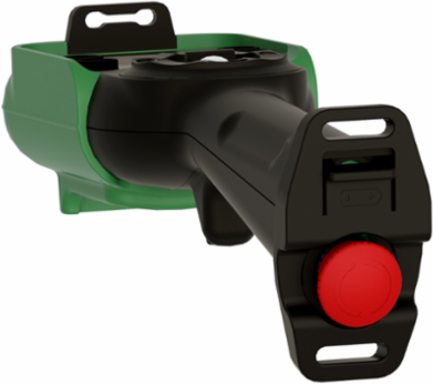

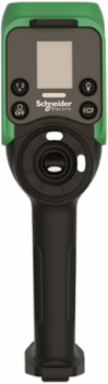

Schneider Electric ZART8D Harmony eXLhoist Remote Control, 6 Push Buttons, IP65, 50m Range
- MPN: ZART8D
- PPN: SCH-ZART8D
CAD
$1198.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

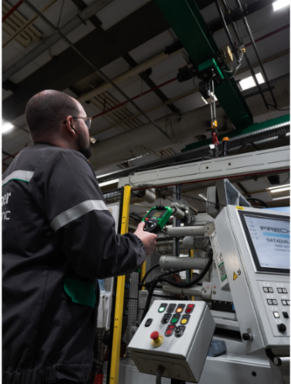

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France

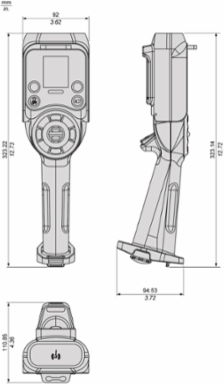

Depth90 mm
Communications & Management Attributes
- Communication Network Type
- wireless bluetooth low energy
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Button Type
- 6 configurable motion push-button, 2 configurable auxiliary push-button
- Material
- enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate), Cover PP (polypropylene), protective cover EPDM rubber
- Response Time
- < 300 ms full duplex, < 300 ms full duplex< 300 ms full duplex, < 300 ms full duplex
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08892115485564304, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.18147611548556433, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 61 kg CO2 eq., 60.81499999999998
- Local Publishable Date
- 2026-06-20
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312040EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Product Kit Identifier
- N
- Charging Time
- 900 s
- Display Type
- LCD display 34 x 42 mm
- Mechanical Robustness
- free fall resistance 4.5 m IEC 60068-2-27
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony eXLhoist
- Service Life
- 5 year(s)
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 84 kg CO2 eq.
- Vibration Resistance
- 0.075 mm 10-55 Hz)IEC 60068-2-6
- Pep Code
- ENVPEP2312040_V1
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 340 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Function Availableaccelerometer function, vibrator function
Radio AgreementANATEL, ICASA, SRRC, FCC, ARIB, RSS
Certificate AgencyCE, UL, JIS, EAC, C-tick, CSA, KC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.46181994750656175
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.38199475065617
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
Tier2
Function OptionAdvanced
Autonomy30 h
Device Short NameZART
Mechanical Durability5000000 cycles
Operating Distance50 m
Product Or Component Typehand-held remote control
ReturnabilityYes
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Transmission Frequency2.4 GHz
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %6
Width Nominal100 mm
Package Weight(Lbs)732.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 83.92921196850392
- Environmental Disclosure
- ENVPEP2312040_V1
- Ip Degree Of Protection
- IP65
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % -20-60 °C operating
- Pep Code
- ENVPEP2312040_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 4
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- hand-held remote control
Range Of ProductHarmony eXLhoist
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
