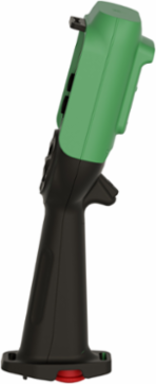

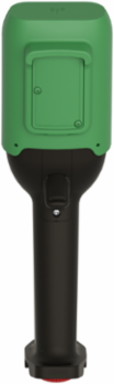

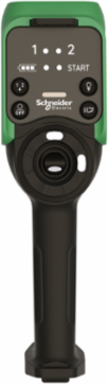

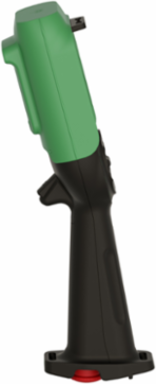

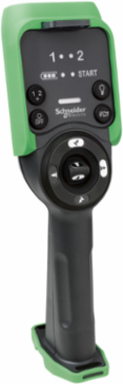

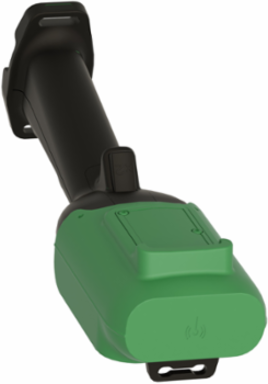

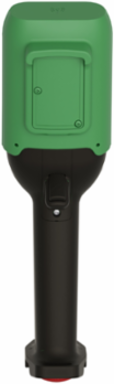

Schneider Electric ZART8L Harmony eXLhoist Remote Control, 6 Push Buttons, IP65, 50m Range
- MPN: ZART8L
- PPN: SCH-ZART8L
- UNSPSC: 39122216
CAD
$1027.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

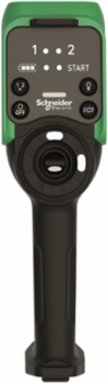

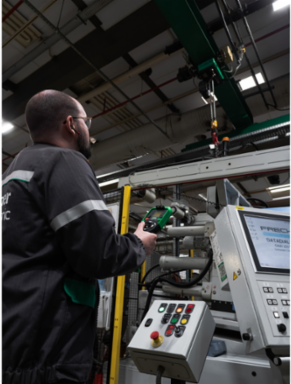

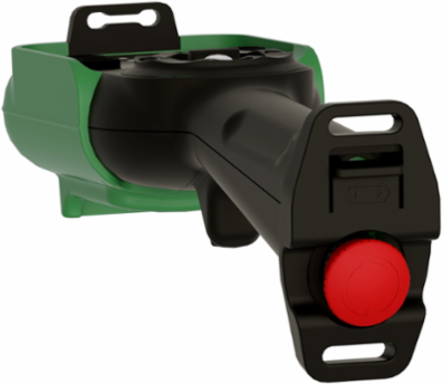

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has 4 LEDs. This remote control (transmitter) with LEDs is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB12W and ZARB12H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Features
- Provide complete innovative crane operator control solutions to help improve machine and crane operator efficiency
- Simple modular design with great efficiency helps to reduce installation and maintenance downtime
- Wireless transmission allow remote control to transmit steady signal, commands and information
- Designed as per international standards for high performance
- Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|

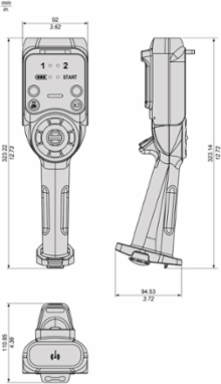

| Depth | 90 mm |
| Weight | 680 g |
|---|
Communications & Management Attributes
| Communication Network Type | wireless bluetooth low energy |
|---|
Complementary Attributes
| Maximum Sensing Distance | 100 m in free field |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Material | enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate)Cover PP (polypropylene)protective cover EPDM rubber |
| Response Time | < 300 ms full duplex, < 300 ms full duplex< 300 ms full duplex, < 300 ms full duplex |
| Carbon Footprint Of The Distribution Phase A4 | 0.08892115485564304, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.18147611548556433, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 61 kg CO2 eq., 60.81499999999998 |
| Local Publishable Date | 2026-02-17 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2312040EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1415 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Product Kit Identifier | N |
| Charging Time | 900 s |
| Device Short Name | ZART |
| Function Available | accelerometer function |
| Mechanical Robustness | free fall resistance 4.5 m IEC 60068-2-27 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony eXLhoist |
| Service Life | 5 year(s) |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 84 kg CO2 eq. |
| Vibration Resistance | 0.075 mm 10-55 Hz)IEC 60068-2-6 |
| Database Version | 2022-01 |
| Height Nominal | 340 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Radio Agreement | SRRC, ARIB, ANATEL, ICASA, FCC, RSS |
| Certificate Agency | KC, C-tick, EAC, CSA, UL, CE, JIS |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.46181994750656175 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 22 kg CO2 eq., 22.38199475065617 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package |
| Tier | 1 |
| Function Option | Advanced |
| Autonomy | 30 h |
| Control Button Type | 6 configurable motion push-button2 configurable auxiliary push-button |
| Display Type | 4 LEDs |
| Mechanical Durability | 5000000 cycles |
| Operating Distance | 50 m |
| Product Or Component Type | hand-held remote control |
| Returnability | Yes |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Transmission Frequency | 2.4 GHz |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 100 mm |
| Customs Code | 8537109170 |
| Functional Unit Description | The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 6 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 83.92921196850392 |
| Environmental Disclosure | ENVPEP2312040_V1 |
| Ip Degree Of Protection | IP65 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % -20-60 °C operating |
| Pep Code | ENVPEP2312040_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -20-45 °C, -20-45 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2312040EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 4 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | hand-held remote control |
|---|
| Range Of Product | Harmony eXLhoist |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|---|
| ETIM 10 | EC002024 |
| ETIM 9 | EC002024 |
|---|
