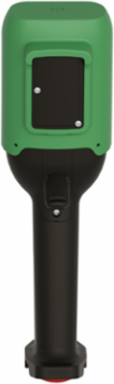

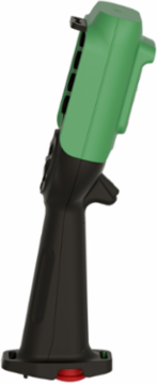

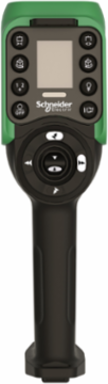

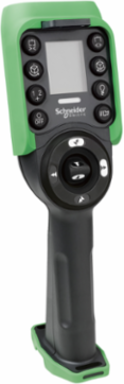

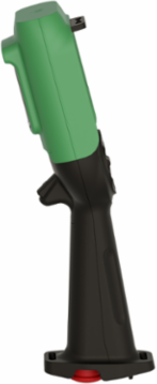

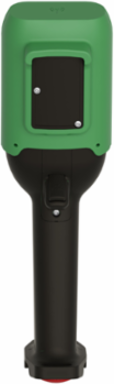

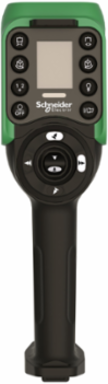

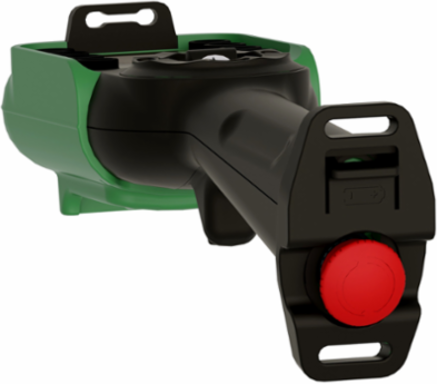

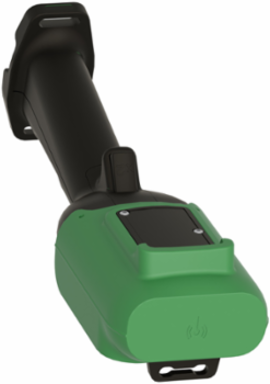

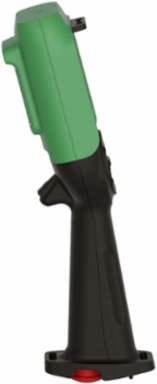

Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65
Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65
Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65
Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65
Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65
Schneider Electric

Schneider Electric ZART12D Harmony eXLhoist Remote Control with LCD Display, 6 Push Buttons, IP65

  • MPN: ZART12D
  • PPN: SCH-ZART12D

CAD

$1627.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 6 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France

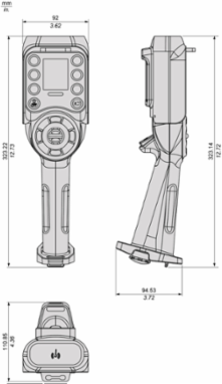

Depth90 mm

Communications & Management Attributes

Communication Network Type
wireless bluetooth low energy

Complementary Attributes

Maximum Sensing Distance
100 m in free field

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Control Button Type
6 configurable motion push-button, 6 configurable auxiliary push-button
Material
enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate), Cover PP (polypropylene), protective cover EPDM rubber
Response Time
< 300 ms full duplex, < 300 ms full duplex< 300 ms full duplex, < 300 ms full duplex
Carbon Footprint Of The Distribution Phase [A4]
0.099644, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.20336, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
61 kg CO2 eq., 60.815
Local Publishable Date
2026-02-17
Stocking Flag
Y
Manufacturing Carbon Footprint
25.081
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2312040EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1415
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier Id
1
Function Option Id
ADVANCED
Product Kit Identifier
N
Charging Time
900 s
Display Type
LCD display 34 x 42 mm
Mechanical Robustness
free fall resistance 4.5 m IEC 60068-2-27
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Harmony eXLhoist
Service Life
5 year(s)
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
87 kg CO2 eq.
Vibration Resistance
0.075 mm 10-55 Hz)IEC 60068-2-6
Pep Code
ENVPEP2312040_V1
Pep Verification Date
2025-02-23
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
referent product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal
340 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]
0.1468
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
60.762
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
60.815
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
299.38
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
2.1168
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
11.375
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
627.28
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
824.7
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
-6.2253
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
-3.6562
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
8.2726
Net Use Of Fresh Water (M3) End Of Life [C1-c4]
1.694
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
9.3965
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
18.047
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
309.91
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
2.2687
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
11.658
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
10.53
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
18.047
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
1520.1101
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
1.3883
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1223.9
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
-5.845
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
2.1894
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
8.3409
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
1.1768
Water Use (M3 Eq) Operational Energy Use [B6]
2.3031
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Function Availableaccelerometer function, vibrator function
Radio AgreementFCC, ARIB, RSS, ICASA, ANATEL, SRRC
Certificate AgencyC-tick, CSA, CE, JIS, KC, EAC, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.51751
Carbon Footprint Of The Manufacturing Phase [A1 To A3]25 kg CO2 eq., 25.081
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Use Carbon Footprint60.815
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
Tier1
Function OptionAdvanced
Autonomy30 h
Device Short NameZART
Mechanical Durability5000000 cycles
Operating Distance50 m
Product Or Component Typehand-held remote control
ReturnabilityYes
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Transmission Frequency2.4 GHz
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %6
Width Nominal100 mm
Package Weight(Lbs)749.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]24.956
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]25.081
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle1538.1601
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]1.3883
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1223.9
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-5.845
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.3878
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]127.3
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]95.125
Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]0.7027
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]43.148
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]10.199
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.0331
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]18.047
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]1.3901
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1466.8
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-6.6799
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]242.92
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]18.047
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]281.33
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.1168
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]11.375
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.1894
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.0117
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]242.92
Water Use (M3 Eq) Manufacturing [A1-a3]28.75
Water Use (M3 Eq) End Of Life [C1-c4]64.72

Environment Attributes Main

Ambient Air Temperature For Operation
-20-60 °C, -20-60 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
86.716514
Environmental Disclosure
ENVPEP2312040_V1
Ip Degree Of Protection
IP65
Operating Altitude
0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic
No
Relative Humidity
0-95 % -20-60 °C operating
Pep Code
ENVPEP2312040_V1
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 4
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
hand-held remote control
Range Of ProductHarmony eXLhoist

ETIM

ETIM 8
EC000257
ETIM 9EC000257
