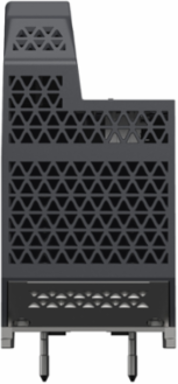

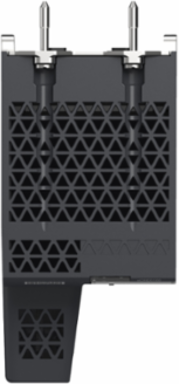

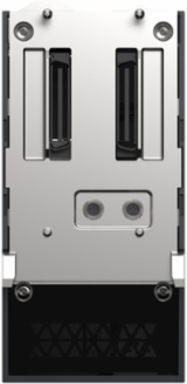

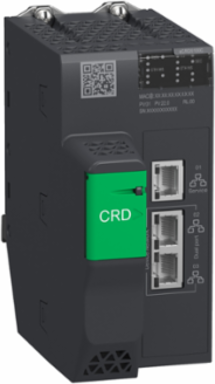

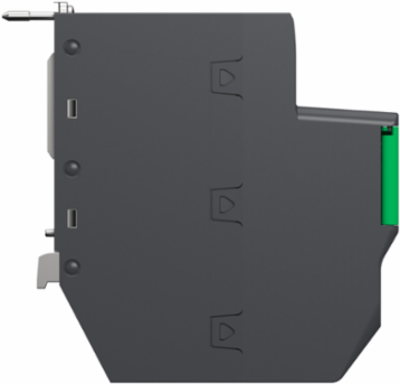

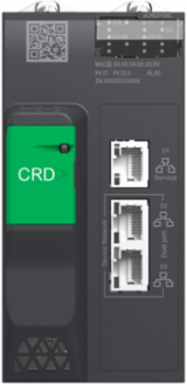

Schneider Electric BMECRD0100C Remote I/O Adapter for EcoStruxure Automation Expert, 24 V DC, IP20, Ethernet
- MPN: BMECRD0100C
- PPN: SCH-BMECRD0100C
CAD
$2369.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Remote I/O Adapter for EcoStruxure Automation Expert is designed to enhance the flexibility and efficiency of automation systems. This unit operates at 24 V DC and features an IP20 rating, making it suitable for various industrial environments. With its Ethernet connectivity, it allows for seamless integration into existing networks, facilitating communication and data transfer across devices. Its adaptability positions it as a crucial component for modern automation solutions, ensuring reliable operation and streamlined processes in industrial applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
| Depth | 131 mm |
|---|
Communications & Management Attributes
| Communication Network Type | IPv4 (internet protocol), IPv6 (internet protocol) |
|---|---|
| Communication Port Protocol | EtherNet/IP |
| Communication Service | Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), DHCP client, TFTP client, FTP client, FDR client, NTP client |
|---|
Complementary Attributes
| Integrated Connection Type | 1 Ethernet TCP/IP service or distributed equipment2 Ethernet TCP/IP Ethernet RIO Network (RSTP) |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Bus Type | bus X across the remote backplane, Ethernet across the remote backplane |
| Function Available | input data is collected and published to the remote I/O head adaptor, output modules are updated with the data received from remote I/O head adaptor, system time stamping, I/O extension rack |
| Certificate Agency | CE, UKCA, RCM, cULus, EAC, Merchant Navy, hazardous location class 1, division 2, ATEX zone 2/22IECEx zone 2/22 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.36789527, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 64 kg CO2 eq., 63.8222183099 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Use Carbon Footprint | 180.84 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 295 mA |
| Device Application | X80 Ethernet RIO drop adaptor |
| Fixing Mode | by screws |
| Module Format | double |
| Port Ethernet | 10/100BASE-TX |
| Product Or Component Type | dPAC module |
| Protective Treatment | conformal coating |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 245 kg CO2 eq. |
| Pep Code | ENVPEP1312016EN |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC) |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 558.1872 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Width Nominal | 64 mm |
| Package Weight(Lbs) | 871.0 g |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2114.6 |
| Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 3.5152 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 199 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 5133.8 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 4440.7 |
| Water Pollution (M3) Operational Energy Use [B6] | 8919.5 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3 |
| Local Signalling | 1 LED (green) for module active (RUN)1 LED (red) for I/O error (I/O)1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for download in progress (DL), 1 LED (green/red) for cyber security (SEC) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1123814906, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0031837504 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 181 kg CO2 eq., 180.84 |
| Local Publishable Date | 2026-03-10 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1312016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2330 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Condition Of Use | SoftdPAC required |
| Cybersecurity | firmware signature |
| Exchange Mode | half duplex, full duplex, autonegotiation, auto MDIX |
| Marking | CE |
| Mounting Mode | rack-mounted |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | for remote I/O modules |
| Range Of Product | EcoStruxure Automation Expert |
| Software Version | EIME v5.8.1 |
| Topology | ring |
| Transmission Rate | 10/100 Mbit/s |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Height Nominal | 131 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 12617 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 180.84 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 2165.2 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 4440.7 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 693.07 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 693.07 |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Product Compatibility | 0-1024 discrete channel, 0-256 analog channel, HART module |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 245.1456788208 |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent external review |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP1312016EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1312016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | dPAC module |
|---|
| Range Of Product | EcoStruxure Automation Expert |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|
| ETIM 9 | EC001423 |
|---|
Input Attributes
| Input Voltage | 24 V DC |
|---|

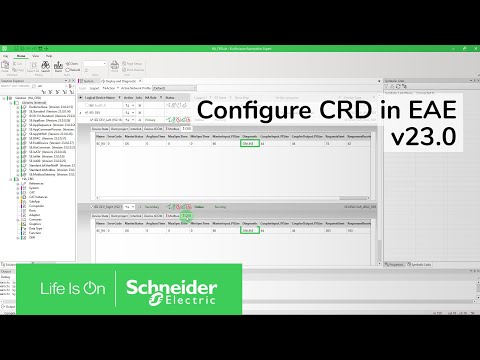

Loading video…
