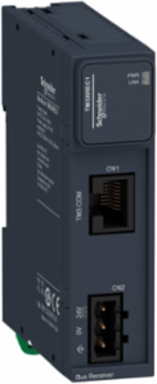

Schneider Electric TM3XREC1 Modicon TM3 Remote Receiver Module 24V DC, 7 I/O Channels, IP20
- MPN: TM3XREC1
- PPN: SCH-TM3XREC1
CAD
$161.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon TM3 Remote Receiver Module 24V DC, 7 I/O Channels, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth73.3 mm
Complementary Attributes
- Maximum Power Dissipation In W
- 1 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- RJ45 connector for connecting the bus transmitter, removable screw terminal block, 3 for connecting the 24 V DC power supply
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Certificate Agency
- Merchant Navy, GOST, C-tick, CSA HazLoc, CE, UKCA, RCM, EAC, cULus
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.044094451, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.3682172373
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Cable Distance Between Devices
- 0.5-5 mm extension cable 2 RJ45 between receiver and transmitter
- Electromagnetic Emission
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Marking
- CE
- Number Of Hw Interfaces Other
- 1
- Product Or Component Type
- remote receiver module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- EIME v 5.7.0.3
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 21 kg CO2 eq.
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Potential Separation Present
- false
- Radio Standard Egprs
- false
- Pep Code
- ENVPEP1403011EN
- Pep Verification Date
- 2018-07-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- to connect the I/O modules of the M2•• automation system in a remote position and enhance the capabilities of the logic controllers 78.60% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 39.99
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 23.65 mm
- Maximum Number Of I/O Expansion Module
- 7
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED green power supply, 1 LED green Link (Link Status)
Vibration Resistance3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
Carbon Footprint Of The Distribution Phase [A4]0.0206432113, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0004451192
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]20 kg CO2 eq., 19.5927483525
Local Publishable Date2026-03-26
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403011EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Current Consumption40 mA 24 V DC via bus connector
Front Installation Possiblefalse
Network TypeDC
Product AvailabilityStock - Normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM3
Shock Resistance15 gn 11 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessoryfalse
Radio Standard Ltefalse
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC external supply - 15...20 %)
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)160.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-50 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-70 °C-40-70 °C
- Environmental Disclosure
- ENVPEP1403011EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1403011EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint21.0261483714
Circularity ProfileENVEOLI1403011EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2018-07-01
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- remote receiver module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Output Attributes
- Power Supply Output Current
- 560-560 mA 5 V expansion bus, 560-560 mA 24 V expansion bus
