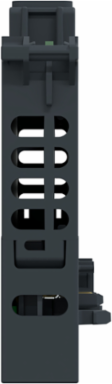

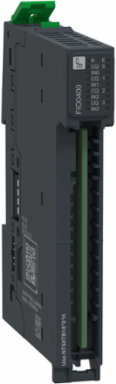

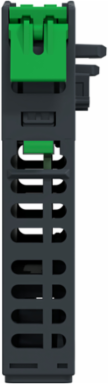

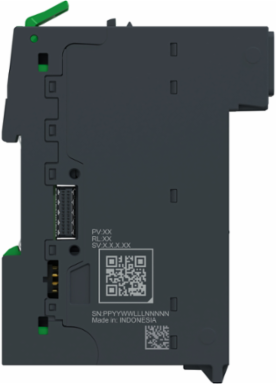

Schneider Electric NTSFIO0400K Field Device Master Module + Base, IO-Link Master, 4 Channels, Modicon Edge I/O NTS

MPN: NTSFIO0400K
PPN: SCH-NTSFIO0400K

$577.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

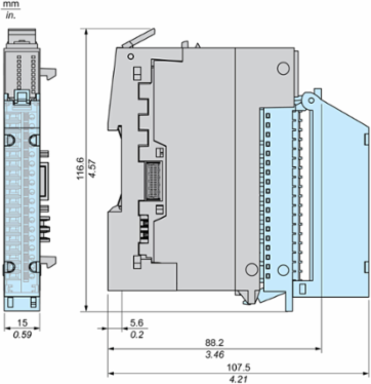

This field device master kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a field device master module. It serves as a communication interface for a cluster utilizing the IO-Link Master protocol with its 4 channels. It manages communication between field devices like sensors, actuators, and controllers, and the control system. It functions within a temperature range of minus 20 to 60 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with bus and field power supply modules. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, United States

Depth	80 mm

Communications & Management Attributes

Communication Service	IO-Link (COM1/2/3), SIO-Mode (digital input or output)

Communication Port Protocol	IO-Link

Physical Attributes

Cable Length	20 m

Housing Color	grey

Important Information Attributes

Data Format	1 start bit, 8 data bits, 1 parity bit even
Local Signalling	1 LED green module operating (RUN), 1 LED green/red, 1 LED green input channel1 LED red module error (ERR)
Mounting Support	top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
Software Version	V 1.1.3, v6.1
Certificate Agency	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.20738743126918327
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	9 kg CO2 eq., 9.053992310162123
Local Data Status	Publishable
Pre Comm Date	2025-01-31
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2410003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2442
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Connector Type	terminal block
Exchange Mode	C/Q signal in IO-Link master mode
Isolation Between Channels	none
Mandatory Accessory	NTSXTB18_0_H terminal block
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Edge I/O NTS
Shock Resistance	15 g 11 ms with and without accessory)
Total Lifecycle Carbon Footprint	33 kg CO2 eq.
Vibration Resistance	1 g without accessory2 g with accessory
Housing Color	grey
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Indonesia, ID
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	100 mm
Input/Output Number	4 discrete input (configurable as input 24 V DC Sink or output 24V DC Push-Pull 200mA/channel))4 discrete input/output optional)
Package Weight(Lbs)	102.000 g
Warranty (In Months)	18

Kit Composition	NTSFIO0400 module, NTSXBA0100H base
Marking	CE, UKCA, cULus, RCM
Protection Type	thermal protection, short-circuit protection, overcurrent protection
Transmission Rate	4.8 kbit/s, 38.4 kbit/s, 230.4 kbit/s
Carbon Footprint Of The Distribution Phase [A4]	0.11394025836389983, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00018395697987765396, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	24 kg CO2 eq., 23.579600774680898
Local Publishable Date	2026-01-12
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Device Application	Industrial Application
Hot Swapping Fallback	yes
Isolation Between Channels And Bus	1000 V
Power Supply Type	external power supply isolated (24 VDC SELV)
Product Or Component Type	field device master module
Returnability	Yes
Sustainable Packaging	Yes
Transmission Support Medium	IO-Link Master standard with 4 ports
Dc Supply Voltage	20.4-28.8 V
Pep Code	ENVPEP2410003EN
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal	15 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU - directive basse tension
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Circularity Profile	ENVEOLI2410003EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2410003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	32.95510473145598
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2410003EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	NTSN.....
Relative Humidity	5-95 % without condensation
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
