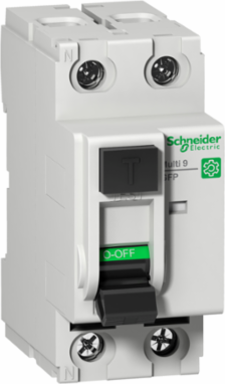

Schneider Electric M9R81225 Multi9 GFP 2P Residual Current Circuit Breaker 25A 30mA IP20/IP40
Schneider Electric M9R81225 Multi9 GFP 2P Residual Current Circuit Breaker 25A 30mA IP20/IP40
- MPN: M9R81225
- PPN: SCH-M9R81225
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$999.31/ EA
Description
This Multi GFP product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 26mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Specifications
Complementary
- Network Frequency
- 50/60 Hz
- Contact Position Indicator
- yes
- Mounting Support
- DIN rail
- Connections - Terminals
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Wire Stripping Length
- 14 mm for top or bottom connection
- Residual Current Tripping Technology
- voltage independent
- Mounting Mode
- clip-on
- Mechanical Durability
- 20000 cycles
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 61008-1
- Width
- 36 mm
- Tightening Torque
- 3.5-3.5 N.m top or bottom
- [Ue] Rated Operational Voltage
- 120/240 V AC 60 Hz || 240 V AC 50 Hz
Height81 mm
Locking Options Descriptionpadlocking in OFF position
9 Mm Pitches4
Net Weight0.22 kg
Control Typetoggle
[Ui] Rated Insulation Voltage440 V AC 50/60 Hz
Rated Breaking And Making CapacityIdm 1500 A EN/IEC 61008-1
Local SignallingON, OFF, fault trip
Colourgrey
Depth60 mm
Rated Conditional Short-Circuit CurrentInc 10 kA 100 A gG
Specifications
- [In] Rated Current
- 25 A 40 °C EN/IEC 61008-1
- Earth-Leakage Protection Class
- type A-SI (Super Immunised)
- Product Or Component Type
- residual current circuit breaker (RCCB)
- Utilisation Category
- AC-23A EN/IEC 61008-1
- Earth-Leakage Protection Time Delay
- instantaneous
- Neutral Position
- left
- Device Short Name
- GFP
Network TypeAC
Earth-Leakage Sensitivity26 mA UL 1053 || 30 mA EN/IEC 61008-1
Product NameMulti9 GFP
RangeMulti9
Poles Description2P
Device Applicationdistribution
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Standards
- EN/IEC 61008-1 || UL 1053
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Pollution Degree
- 3
- Relative Humidity
- 95-95 % 55-55 °C
Tropicalisation2 IEC 60068-1
Product CertificationsIEC || UL
Ip Degree Of ProtectionIP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Ambient Air Temperature For Storage-40-70 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2301023EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
