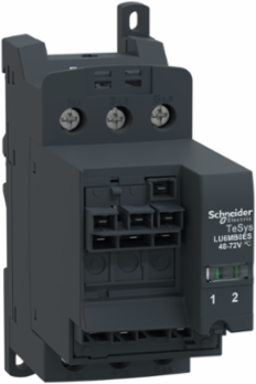

Schneider Electric LU6MB0ES TeSys U Reverser Block, 32A, 690V AC, 48-72V DC Coil, 115mm Height
- MPN: LU6MB0ES
- PPN: SCH-LU6MB0ES
CAD
$581.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 48V AC / 48-72V DC. To be used with an advanced power base LUB120 or LUB320 equipped with a Control Unit LUC*ES type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth113 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Certificate Agency
- CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
- Connections - Terminals
- control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable endcontrol circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid, power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid, control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable endcontrol circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid, control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end, power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid, power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.0999455991049727
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.953756486194221
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2407003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2026
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LU6MB
- Device Application
- motor control
- Energy Efficiency Optimized
- False
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Network Frequency
- 40...60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH IEC 60068
- Range Of Product
- TeSys Ultra
- Returnability
- No
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 58
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz48...72 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Resistance To Electrostatic Discharge8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
Tightening Torquepower circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.23239727629557336, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.030353320991380238, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-06-27
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Current Consumption2300 mA 48 V AC I maximum while closing2300 mA 48...72 V DC I maximum while closing
Device Short NameLU6MB
Fixing Modeclipped (DIN rail)screw-fixed (plate)
Inrush Restraint Duration25 ms AC15 ms DC
Operating Time150 ms with change of direction75 ms without change of direction
Product Or Component Typereverser block
RangeTeSys
Resistance To Radiated Fields10 V/m level 3 IEC 61000-4-3
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Sustainable PackagingYes
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
Pep CodeENVPEP2407003EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal115 mm
[Ie] Rated Operational Current32 A
[Ue] Rated Operational Voltage690 V AC power circuit
Non-dissipating Shock Wave1 kV serial mode IEC 60947-6-22 kV common mode IEC 60947-6-2
Package Weight(Lbs)435.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 4.316452682586148
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2407003EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2407003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- reverser block
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
