Schneider Electric LU6MB0B TeSys Ultra Reverser Block, 32A, 690V AC, 24V AC Coil
Schneider Electric LU6MB0B TeSys Ultra Reverser Block, 32A, 690V AC, 24V AC Coil
- MPN: LU6MB0B
- PPN: SCH-LU6MB0B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$548.62/ EA
Description

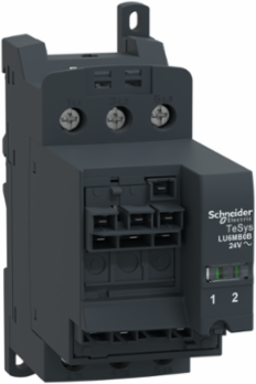

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24 AC. To be used with an advanced power base LUB120 or LUB320 equipped with a Control Unit LUC*B type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Vibration Resistance
- 2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
- Protective Treatment
- TH IEC 60068
- Resistance To Electrostatic Discharge
- 8 kV level 3, in open air IEC 61000-4-2 || 8 kV level 4, on contact IEC 61000-4-2
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance To Radiated Fields10 V/m level 3 IEC 61000-4-3
Shock Resistance10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of ProtectionIP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone)
Operating Altitude2000 m
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Product Certifications
- CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
- Height
- 115 mm
- Net Weight
- 0.425 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- Standards
- EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
- Compatibility Code
- LU6MB
- Width
- 45 mm
- Depth
- 113 mm
[Ue] Rated Operational Voltage690 V AC power circuit
Connections - Terminalscontrol circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid || control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid || power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid || power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end || power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end || power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid || power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Fixing Modeclipped (DIN rail) || screw-fixed (plate)
Inrush Restraint Duration25 ms AC || 15 ms DC
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
Operating Time150 ms with change of direction || 75 ms without change of direction
Tightening Torquecontrol circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips No 2 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm || power circuit 1.9-2.5 N.m pozidriv No 2 6 mm
Network Frequency40...60 Hz
Specifications
- Device Mounting
- separate mounting
- Product Or Component Type
- reverser block
- Range
- TeSys
- Device Application
- motor control
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Current Consumption2360 mA 24 V AC I maximum while closing
[Ie] Rated Operational Current32 A
Device Short NameLU6MB
