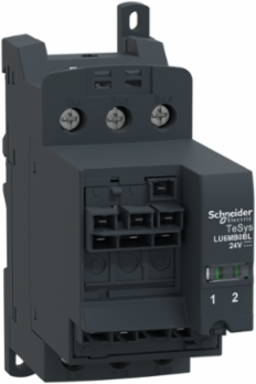

Schneider Electric LU6MB0BL TeSys Ultra Reverser Block 38A, 690V AC, 24V DC Coil, Width 45 mm
- MPN: LU6MB0BL
- PPN: SCH-LU6MB0BL
CAD
$581.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24 DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth113 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- 120 mA 24 V DC I maximum while closing, 120 mA 24 V DC I rms sealed
- Resistance To Electrostatic Discharge
- 8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
- Tightening Torque
- power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.23613700258078948, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.03084176523721854, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- motor control
- Energy Efficiency Optimized
- False
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Network Frequency
- 40...60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH IEC 60068
- Range Of Product
- TeSys Ultra
- Returnability
- No
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 58
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- Package Weight(Lbs)
- 448.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Resistance To Fast Transients2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Certificate AgencyCE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
Connections - Terminalscontrol circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable endcontrol circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid, power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid, control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable endcontrol circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid, control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end, power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid, power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1176458731135583
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.0012881997651624
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2407003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2026
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeLU6MB
Device Short NameLU6MB
Fixing Modeclipped (DIN rail)screw-fixed (plate)
Inrush Restraint Duration25 ms AC15 ms DC
Operating Time150 ms with change of direction75 ms without change of direction
Product Or Component Typereverser block
RangeTeSys
Resistance To Radiated Fields10 V/m level 3 IEC 61000-4-3
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Sustainable PackagingYes
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
Pep CodeENVPEP2407003EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal115 mm
[Ie] Rated Operational Current38 A
[Ue] Rated Operational Voltage690 V AC power circuit
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 4.385912840696729
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2407003EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2407003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- reverser block
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
