TeSys U Reverser Block 38A 690V 110-240V AC/DC for Side Mounting
Schneider Electric

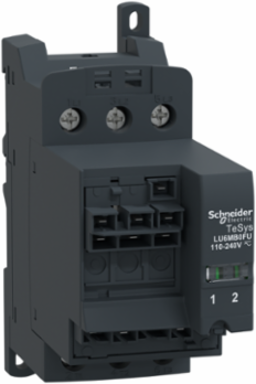

Schneider Electric LU6MB0FU TeSys U Reverser Block 38A 690V 110-240V AC/DC for Side Mounting

  • MPN: LU6MB0FU
  • PPN: SCH-LU6MB0FU

CAD

$581.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, United States
Depth113 mm

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Current Consumption
1000 mA 110...220 V DC I maximum while closing, 1000 mA 110...240 V AC I maximum while closing
Fixing Mode
clipped (DIN rail), screw-fixed (plate)
Operating Time
150 ms with change of direction, 75 ms without change of direction
Resistance To Fast Transients
2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Tightening Torque
power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mmcontrol circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
Certificate Agency
CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] Rated Insulation Voltage
690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Non-dissipating Shock Wave
1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.1227030942588685
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
3 kg CO2 eq., 3.01486868935686
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2407003EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2026
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Compatibility Code
LU6MB
Device Short Name
LU6MB
Immunity To Radioelectric Fields
10 V IEC 61000-4-6
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TH IEC 60068
Range Of Product
TeSys Ultra
Returnability
Yes
Sustainable Packaging
Yes
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
France, FR
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential, In %
58
Width Nominal
45 mm
[Ue] Rated Operational Voltage
690 V AC power circuit
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Inrush Restraint Duration25 ms AC, 15 ms DC
Resistance To Electrostatic Discharge8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
Shock Resistance10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-27, 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
[Uc] Control Circuit Voltage110...240 V AC 50/60 Hz, 110...220 V DC
Connections - Terminalscontrol circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid, power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end, power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end, power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigidcontrol circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid, control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end, power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid, power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]0.23720549580513695, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.030981320736029484, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-05-30
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmotor control
Energy Efficiency OptimizedFalse
Network Frequency40...60 Hz
Product Or Component Typereverser block
RangeTeSys
Resistance To Radiated Fields10 V/m level 3 IEC 61000-4-3
Software Versionv6.1
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Pep CodeENVPEP2407003EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal115 mm
[Ie] Rated Operational Current38 A
[Uimp] Rated Impulse Withstand Voltage6 kVIEC 60947-6-2
Package Weight(Lbs)444.000 g
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection
IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone)
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
4.4057586001568945
Circularity Profile
ENVEOLI2407003EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2024-07-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2407003EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2407003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
reverser block
Range Of ProductTeSys Ultra

ETIM

ETIM 8
EC000010
ETIM 9EC000010

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Accessories
