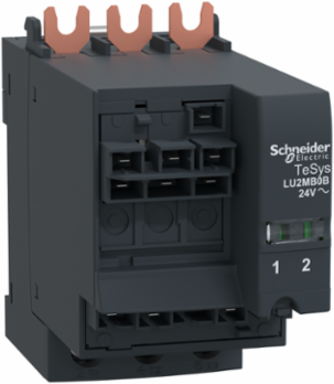

Schneider Electric LU2MB0B TeSys U Reversing Block, 32A, 690V AC, 24V AC Coil, Vertical Mounting
- MPN: LU2MB0B
- PPN: SCH-LU2MB0B
CAD
$552.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V AC. To be used with an advanced power base LUB120 or LUB320 equipped with a Control Unit LUC*B type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth105 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
- Operating Time
- 150 ms with change of direction, 75 ms without change of direction
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Tightening Torque
- power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mmcontrol circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm
- Certificate Agency
- CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
- Connections - Terminals
- control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid, power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end, power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end, power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigidcontrol circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid, control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end, power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid, power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.20194521940167065, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.026375989275268345, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Current Consumption
- 2360 mA 24 V AC I maximum while closing
- Device Short Name
- LU2MB
- Fixing Mode
- plug-in
- Network Frequency
- 40...60 Hz
- Product Or Component Type
- reverser block
- Range
- TeSys
- Resistance To Radiated Fields
- 10 V/m level 3 IEC 61000-4-3
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pep Code
- ENVPEP2407003EN
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 80 mm
- [Ie] Rated Operational Current
- 32 A
- [Ue] Rated Operational Voltage
- 690 V AC power circuit
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Inrush Restraint Duration25 ms AC, 15 ms DC
Resistance To Electrostatic Discharge8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
Shock Resistance10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-27, 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Non-dissipating Shock Wave1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9558147964636314
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.56671253283084
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2407003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2026
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeLU2MB
Device Applicationmotor control
Energy Efficiency OptimizedFalse
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH IEC 60068
Range Of ProductTeSys Ultra
ReturnabilityNo
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential, In %58
Width Nominal45 mm
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage6 kVIEC 60947-6-2
Package Weight(Lbs)378 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection
- IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone)
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3.750848537971411
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2407003EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2407003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- reverser block
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
