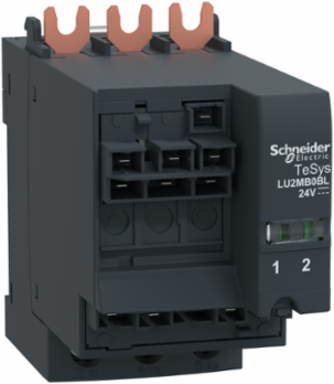

Schneider Electric LU2MB0BL TeSys U Reverser Block 38A 690VAC 24VDC Vertical Mounting

MPN: LU2MB0BL
PPN: SCH-LU2MB0BL
UNSPSC: 39121521

$552.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting.

Features

DIN-rail mounting and screw fixing
Type of control to be achieved: Basic or Advanced
Modular, plug & play structure helps you to perform quick maintenance
Direct access to detailed information for every motor starter of your installation
Advanced motor management system

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States
Depth	105 mm

Weight	393 g

Complementary Attributes

Ui Rated Insulation Voltage	690 V IEC 60947-6-2600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Uc Control Circuit Voltage	24 V DC
Uimp Rated Impulse Withstand Voltage	6 kVIEC 60947-6-2

Ie Rated Operational Current	38 A
Ue Rated Operational Voltage	690 V AC power circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	120 mA 24 V DC I maximum while closing, 120 mA 24 V DC I rms sealed
Resistance To Electrostatic Discharge	8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
Tightening Torque	power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips No 2 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm
Certificate Agency	CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
Carbon Footprint Of The End Of Life Phase C1 To C4	1 kg CO2 eq., 0.993743955053458
Carbon Footprint Of The Manufacturing Phase A1 To A3	3 kg CO2 eq., 2.668566204768572
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2407003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2026
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	LU2MB
Device Short Name	LU2MB
Fixing Mode	plug-in
Inrush Restraint Duration	25 ms AC15 ms DC
Operating Time	150 ms with change of direction75 ms without change of direction
Product Or Component Type	reverser block
Range	TeSys
Resistance To Radiated Fields	10 V/m level 3 IEC 61000-4-3
Shock Resistance	10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Sustainable Packaging	Yes
Vibration Resistance	2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
Database Version	2023-02
Height Nominal	80 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Fire Resistance	960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Connections Terminals	control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable endcontrol circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid, power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable endpower circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid, control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable endcontrol circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end, control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid, control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end, power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid, power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end
Carbon Footprint Of The Distribution Phase A4	0.20995891858427662, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.02742265551635042, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-06-27
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	motor control
Energy Efficiency Optimized	False
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Network Frequency	40...60 Hz
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH IEC 60068
Range Of Product	TeSys Ultra
Returnability	Yes
Software Version	v6.1
Total Lifecycle Carbon Footprint	4 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	45 mm
Customs Code	8536504000
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Recyclability Potential In %	58

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection	IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	3.899691733922657
Circularity Profile	ENVEOLI2407003EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2407003EN
Operating Altitude	6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2407003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
