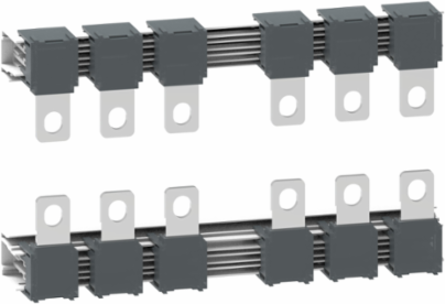

Schneider Electric LA9G3762 Reverser connection bar,TeSys Giga contactor,for LC1G630-800,3 pole
- MPN: LA9G3762
- PPN: SCH-LA9G3762
CAD
$2869.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These accessories are reverser bars for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 800 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Czechia, France, United Kingdom
Depth88 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- ABS, BV, CB, CCC, CCS, cUL, CE, DNV-GL, EAC, KC, LROS (Lloyds register of shipping), RCM, RINA, RMRoS
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LA9G
- Number Of Poles
- 3P
- Product Or Component Type
- set of connections
- Range
- TeSys
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2105013EN
- Width Nominal
- 176 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 12.726 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Circuit Typereversing
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal440.5 mm
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m) without derating5000 m with derating factor
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
Product CompatibilityLC1G630...800, LC1G620
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- set of connections
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
