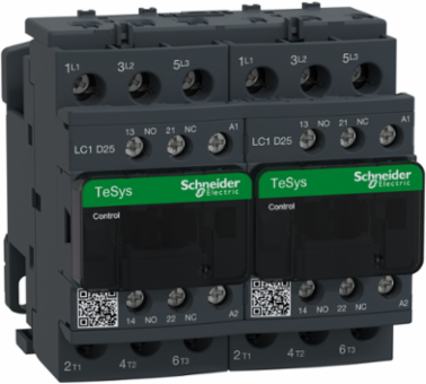

Schneider Electric LC2D25F7 TeSys Deca Reversing Contactor 3P 25A 110V AC 50/60Hz

MPN: LC2D25F7
PPN: SCH-LC2D25F7

$689.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). Rated 25A AC-3 11kW@400V, it includes a 110V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 110V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 110V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore

Depth	92 mm

Complementary Attributes

Control Circuit Type	AC 50/60 Hz, AC 50/60 Hz
Maximum Horse Power Rating	3 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 200/208 V AC 60 Hz for 3 phase motors2 hp at 115 V AC 60 Hz for 1 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors15 hp at 460/480 V AC 60 Hz for 3 phase motors20 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Motor Phase Current	25 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	450 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate	3600 cyc/h 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	resistive load, motor control
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor closed15 Gn for 11 ms, shocks contactor open8 Gn for 11 ms
Mounting Support	rail, plate
Power Range	4-6 kW 200-240 V 3 phase7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
Tightening Torque	power circuit 2.5 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage	110 V
[Icw] Rated Short-time Withstand Current	50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ui] Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1.9114035758292245, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	247 kg CO2 eq., 246.842304725881
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	2 mOhm - Ith 40 A 50 Hz for power circuit
Compatibility Code	LC2D
Contactor Coil Voltage	110 V AC standard
Fire Resistance	850 °C IEC 60695-2-1
Heat Dissipation	2-3 W 50/60 Hz
Mechanical Durability	15 Mcycles
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	reversing contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v6.1
Total Lifecycle Carbon Footprint	254 kg CO2 eq.
Inf Motor Phase Current	25 A
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	602.25
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27

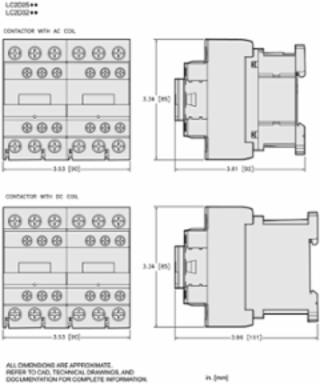

Height Nominal	85 mm
[Ie] Rated Operational Current	25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Electrical Durability	1.65 Mcycles 25 A AC-3 <= 440 V, 1.4 Mcycles 40 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	5.5 kW at 220...230 V AC 50-60 Hz11 kW at 380...400 V AC 50-60 Hz, 11 kW at 415 V AC 50-60 Hz, 11 kW at 440 V AC 50-60 Hz15 kW at 500 V AC 50-60 Hz, 15 kW at 660...690 V AC 50-60 Hz
Power Dissipation Per Pole	1.25 W AC-33.2 W AC-1, 1.25 W AC-3e
Range	TeSys, TeSys Deca
Utilisation Category	AC-1, AC-3, AC-3e
Certificate Agency	DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA, CB
[Uc] Control Circuit Voltage	110 V, 110 V AC 50/60 Hz
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit screw clamp terminals 2 2.5-10 mm²flexible without cable endpower circuit screw clamp terminals 1 1-10 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-10 mm²solid, power circuit screw clamp terminals 2 2.5-10 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]	0.3652458529429971, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 4.837809627300629
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI110229EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0627
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	without built-in suppressor module
Contact Compatibility	M2
Device Short Name	LC2D
Flame Retardance	V1 conforming to UL 94
Interlocking Type	mechanical
Motor Starter Type	reversing contactor
Operating Time	12...22 ms closing4...19 ms opening
Pole Contact Composition	3 NO
Product Name	TeSys Deca
Protective Treatment	TH IEC 60068-2-30
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP1102029EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	66
Width Nominal	90 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Rated Thermal Current (Ith)	40 A
Package Weight(Lbs)	940.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Climatic Withstand	IACS E10, IEC 60947-1 Annex Q category D
Reach Free Shvc	Yes
Carbon Footprint	253.95676378195384
Circularity Profile	ENVEOLI110229EN
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Ambient Air Temperature For Operation	-40-60 °C-40-60 °C60-70 °C with derating
Environmental Disclosure	ENVPEP1102029EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1102029EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
