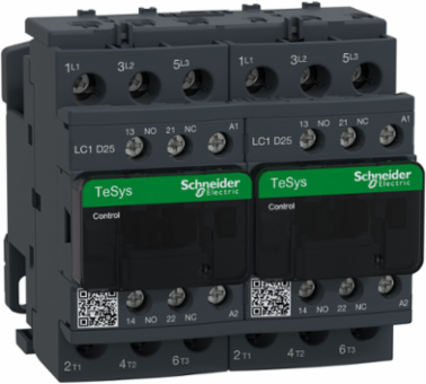

Schneider Electric LC2D25M7 TeSys Deca Reversing Contactor 3P 25A 220V AC Coil
- MPN: LC2D25M7
- PPN: SCH-LC2D25M7
CAD
$689.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). Rated 25A AC-3 11kW@400V, it includes a 220V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 220V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 220V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore

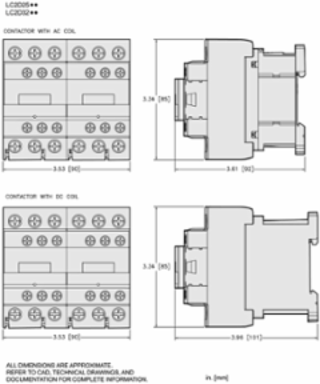

Depth92 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 3 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 200/208 V AC 60 Hz for 3 phase motors2 hp at 115 V AC 60 Hz for 1 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors15 hp at 460/480 V AC 60 Hz for 3 phase motors20 hp at 575/600 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 25 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 450 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor closed15 Gn for 11 ms, shocks contactor open8 Gn for 11 ms
- Mounting Support
- rail, plate
- Power Range
- 4-6 kW 200-240 V 3 phase7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
- Range
- TeSys, TeSys Deca
- Tightening Torque
- power circuit 2.5 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Control Circuit Voltage
- 220 V
- [Icw] Rated Short-time Withstand Current
- 50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.9114035758292245, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 247 kg CO2 eq., 246.842304725881
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Contactor Coil Voltage
- 220 V AC standard
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 2-3 W 50/60 Hz
- Mechanical Durability
- 15 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH IEC 60068-2-30
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Inf Motor Phase Current
- 25 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 602.25
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 85 mm
- [Ie] Rated Operational Current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
- Hold-in Power Consumption In Va
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.65 Mcycles 25 A AC-3 <= 440 V, 1.4 Mcycles 40 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw5.5 kW at 220...230 V AC 50-60 Hz11 kW at 380...400 V AC 50-60 Hz, 11 kW at 415 V AC 50-60 Hz, 11 kW at 440 V AC 50-60 Hz15 kW at 500 V AC 50-60 Hz, 15 kW at 660...690 V AC 50-60 Hz
Power Dissipation Per Pole1.25 W AC-33.2 W AC-1, 1.25 W AC-3e
Product NameTeSys D, TeSys Deca
Range Of ProductTeSys D, TeSys Deca
Utilisation CategoryAC-1, AC-3, AC-3e
Certificate AgencyDNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA, CB
[Uc] Control Circuit Voltage220 V, 220 V AC 50/60 Hz
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit screw clamp terminals 2 2.5-10 mm²flexible without cable endpower circuit screw clamp terminals 1 1-10 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-10 mm²solid, power circuit screw clamp terminals 2 2.5-10 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]0.3652458529429971, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.837809627300629
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI110229EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
Coil Technologywithout built-in suppressor module
Contact CompatibilityM2
Device Short NameLC2D
Flame RetardanceV1 conforming to UL 94
Interlocking Typemechanical
Motor Starter Typereversing contactor
Operating Time12...22 ms closing4...19 ms opening
Pole Contact Composition3 NO
Product Or Component Typereversing contactor
ReturnabilityNo
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1102029EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %66
Width Nominal90 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Rated Thermal Current (Ith)40 A
Package Weight(Lbs)934.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Reach Free Shvc
- Yes
- Carbon Footprint
- 253.95676378195384
- Circularity Profile
- ENVEOLI110229EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Ambient Air Temperature For Operation-40-60 °C-40-60 °C60-70 °C with derating
Environmental DisclosureENVPEP1102029EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102029EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- TeSys D, TeSys Deca
Product Or Component Typereversing contactor
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
