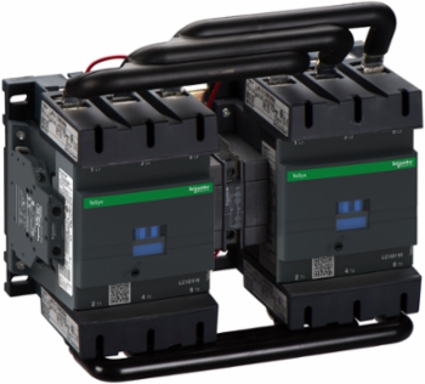

Schneider Electric LC2D115M7 TeSys Deca Reversing Contactor 3P 115A 266mm Width 220V AC 50/60Hz
Schneider Electric LC2D115M7 TeSys Deca Reversing Contactor 3P 115A 266mm Width 220V AC 50/60Hz
- MPN: LC2D115M7
- PPN: SCH-LC2D115M7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2575.22/ EA
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides 220V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open6 Gn for 11 ms
- Height
- 158 mm
- Pollution Degree
- 3
- Flame Retardance
- V1 UL 94
- Protective Treatment
- TH IEC 60068-2-30
- Operating Altitude
- 0...3000 m

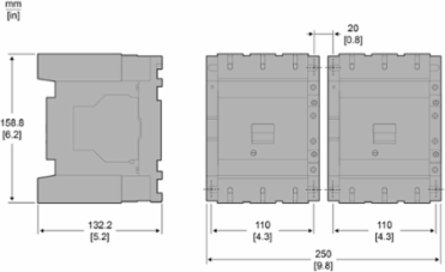

- Width
- 266 mm
Ambient Air Temperature For Operation-40-60 °C || 60-70 °C with derating
Climatic WithstandIACS E10
Net Weight6.35 kg
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face IEC 60529
Fire Resistance850 °C IEC 60695-2-1
Depth148 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060301EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100405EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Control Circuit Voltage Limits
- 0.3...0.5 Uc 55-55 °C drop-out AC 50/60 Hz || 0.8...1.15 Uc 55-55 °C operational AC 50/60 Hz
- Inrush Power In Va
- 280-350 VA 60 Hz 0.8 20 °C) || 280-350 VA 50 Hz 0.8 20 °C)
- Minimum Switching Voltage
- 17 V for signalling circuit
- Heat Dissipation
- 3-8 W 50/60 Hz
- Hold-In Power Consumption In Va
- 2-18 VA 20 °C) 0.3 60 Hz || 2-18 VA 20 °C) 0.3 50 Hz
Minimum Switching Current5 mA for signalling circuit
Insulation Resistance> 10 MOhm for signalling circuit
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Signalling Circuit Frequency25...400 Hz
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Specifications
- Interlocking Type
- electrical || mechanical
- [Ue] Rated Operational Voltage
- power circuit <= 1000 V AC 25...400 Hz || power circuit <= 300 V DC
- Average Impedance
- 0.6 mOhm - Ith 200 A 50 Hz for power circuit
- [Ith] Conventional Free Air Thermal Current
- 200 A (at 60 °C) for power circuit
- Control Circuit Type
- AC 50/60 Hz
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Product Certifications
- BV || CCC || CSA || DNV || GL || RINA || UL || EAC || UKCA
- Product Name
- TeSys Deca
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Range
- TeSys
- Device Presentation
- preassembled with reversing power busbar
- Operating Time
- 20...50 ms closing || 6...20 ms opening
- Maximum Operating Rate
- 2400 cyc/h 60 °C
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- Overvoltage Category
- III
- Motor Power Hp
- 30 hp at 200/208 V AC 60 Hz for 3 phases motors || 40 hp at 230/240 V AC 60 Hz for 3 phases motors || 75 hp at 460/480 V AC 60 Hz for 3 phases motors || 100 hp at 575/600 V AC 60 Hz for 3 phases motors
- Mechanical Durability
- 8000000 cycles
- [Icw] Rated Short-Time Withstand Current
- 250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Power Dissipation Per Pole24 W AC-1 || 7.9 W AC-3 || 7.9 W AC-3e
Auxiliary Contact Composition1 NO + 1 NC
Mounting Supportplate || rail
StandardsCSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
Contactor Applicationmotor control || resistive load
Product Or Component Typereversing contactor
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 1260 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-1 || 250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || power circuit connector 1 10-120 mm²flexible without cable end || power circuit connector 2 10-50 mm²flexible without cable end || power circuit connector 1 10-120 mm²flexible with cable end || power circuit connector 2 10-50 mm²flexible with cable end || power circuit connector 1 10-120 mm²solid without cable end || power circuit connector 2 10-50 mm²solid without cable end
Pole Contact Composition3 NO
Utilisation CategoryAC-3 || AC-1 || AC-3e
[Ie] Rated Operational Current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Electrical Durability0.8 Mcycles 200 A AC-1 <= 440 V || 0.95 Mcycles 115 A AC-3 <= 440 V || 0.95 Mcycles 115 A AC-3e <= 440 V
Poles Description3P
Motor Power Kw30 kW at 220...230 V AC 50...60 Hz || 55 kW at 380...400 V AC 50...60 Hz || 59 kW at 415 V AC 50...60 Hz || 59 kW at 440 V AC 50...60 Hz || 75 kW at 500 V AC 50...60 Hz || 80 kW at 660...690 V AC 50...60 Hz || 65 kW at 1000 V AC 50...60 Hz
[Ui] Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
Device Short NameLC2D
Protective Coverwith
