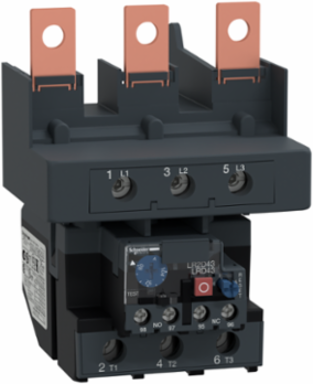

Schneider Electric LRD4365 TeSys Deca Thermal Overload Relay, 80-104A, Class 10A

MPN: LRD4365
PPN: SCH-LRD4365

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$429.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 115 amp through 150 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 80 to 104 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Features

The TeSys Deca LRD4365 features a wide thermal protection adjustment range of 80 to 104 A, allowing precise calibration to your specific motor s full-load current (FLC) via an integrated bimetallic adjustment dial. This granular control eliminates unnecessary operational downtime caused by nuisance trips during startup while providing responsive, tight thermal protection under continuous heavy load conditions.
Engineered for seamless integration, this differential thermal overload relay mounts directly beneath 3-pole TeSys D contactors specifically models LC1D115 and LC1D150 using rugged lug clamps. This direct-coupling feature saves critical enclosure space, cuts down assembly and wiring layout times, and guarantees standard-compliant electrical coordination without the need for standalone terminal blocks.
Built with integrated phase failure and load unbalance detection, the relay automatically triggers a Class 10A trip if a single phase drops out or an uneven load condition occurs, conforming to IEC 60947-4-1 standards. By quickly disconnecting the circuit before severe winding overheating occurs, it protects high-value 45 kW (at 400V) motors from catastrophic, unrepairable single-phasing burnouts.
This unit comes fully equipped with a red manual stop button, a blue reset button that configures easily between manual or automatic reset modes, an integrated trip indicator flag for visual troubleshooting, and a dedicated test button to simulate electrical tripping. Combined with standard built-in 1 NO + 1 NC auxiliary contacts for remote fault signaling, it provides immediate control circuit feedback to your PLC or pilot lights to accelerate troubleshooting routines.
The LRD4365 meets demanding global engineering standards with UL 508, CSA C22.2, IEC 60947-4-1, CE, and ATEX certifications, ensuring full code compliance across Canadian and international industrial projects. Additionally, it is certified as a Green Premium product, featuring full RoHS and REACH compliance along with optimized end-of-life recycling potential for sustainability-driven operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Depth	132 mm

Important Information Attributes

Associated Fuse Rating	4 A gG for signalling circuit, 4 A BS for signalling circuit
Mounting Support	plate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current	0.06 A 440 V DC-13 signalling circuit, 0.12 A 600 V AC-15 signalling circuit
Temperature Compensation	-20-60 °C, -20-60 °C
[Ui] Rated Insulation Voltage	power circuit 1000 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.16290861781894878, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.08722167141519573, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	2 kg CO2 eq., 1.8963357840065684
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	Relay, Control & Measurement - Protection relay
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Control Type	Red push-button stopBlue push-button reset
Dielectric Strength	2.2 kV 50 Hz IEC 60947-1
Network Frequency	0...400 Hz
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Sustainable Packaging	Yes
Thermal Protection Adjustment Range	80-104 A
Total Lifecycle Carbon Footprint	8 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP1101001EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %	63
[Ue] Rated Operational Voltage	1000 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490075

Mechanical Robustness	vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Network Type	AC, DC
Product Name	TeSys LRD, TeSys Deca
Certificate Agency	IEC, UL, CSA, CCC, EAC, ATEX INERIS
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable endpower circuit screw clamp terminals 1 4-50 mm² flexible without cable endpower circuit screw clamp terminals 1 4-50 mm² solid without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible with cable endcontrol circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.2779284715732444
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	4 kg CO2 eq., 4.305506594796376
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1101001
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2023
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	LRD
Device Short Name	LRD
Flame Retardance	V1 conforming to UL 94
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Type	differential thermal overload relay
Relay Application	motor protection
Software Version	v6.1
Thermal Overload Class	class 10A IEC 60947-4-1
Tightening Torque	control circuit 1.7 N.m screw clamp terminalspower circuit 9 N.m screw clamp terminals
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range	80-104 A
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	28.3824
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; France, FR
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Package Weight(Lbs)	836.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-60-70 °C, -60-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1101001
Environmental Disclosure	ENVPEP1101001EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product Compatibility	LC1D115, LC1D150
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	7.729901139610334
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
