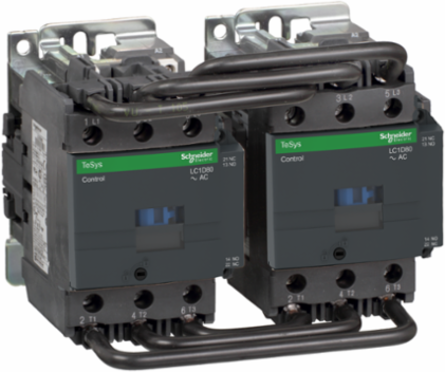

Schneider Electric LC2D80B7 TeSys Deca Reversing Contactor 3P 80A 24V AC, Compact 182mm
- MPN: LC2D80B7
- PPN: SCH-LC2D80B7
CAD
$1508.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca Reversing Contactor 3P 80A 24V AC, Compact 182mm
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France

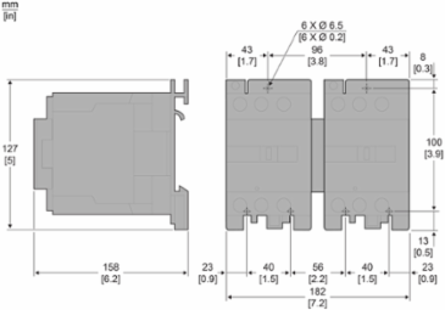

Depth158 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1100 A at 440 V for power circuit conforming to IEC 60947
- Maximum Motor Phase Current
- 80 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 1...1.1 Uc (55-70 °C):operational AC 50/60 Hz
Maximum Horse Power Rating20 hp at 200/208 V AC 60 Hz for 3 phase motors, 7.5 hp at 115 V AC 60 Hz for 1 phase motors, 15 hp at 230/240 V AC 60 Hz for 1 phase motors, 25 hp at 230/240 V AC 60 Hz for 3 phase motors, 60 hp at 460/480 V AC 60 Hz for 3 phase motors, 60 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1, 200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 0.8 Mcycles 125 A AC-1 <= 440 V, 1.5 Mcycles 80 A AC-3 <= 440 V, 1.5 Mcycles 80 A AC-3e <= 440 V
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 22 kW at 220...230 V AC 50 Hz, 37 kW at 380...400 V AC 50 Hz, 45 kW at 415...440 V AC 50 Hz, 55 kW at 500 V AC 50 Hz, 45 kW at 660...690 V AC 50 Hz
- Operating Time
- 20...35 ms closing, 6...20 ms opening
- Power Range
- 15-25 kW 200-240 V 3 phase, 30-50 kW 380-440 V 3 phase, 30-50 kW 480-500 V 3 phase, 55-100 kW 480-500 V 3 phase
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector flat Ø 6 to Ø 8 mm, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- Certificate Agency
- UL, CSA, RINA, GOST, CCC, DNV, LROS (Lloyds register of shipping), GL, BV, UKCA
- [Ie] Rated Operational Current
- 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
- [Uc] Control Circuit Voltage
- 24 V, 24 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 1000 V IEC 60947-4-1
- Hold-in Power Consumption In Va
- 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.43540351509549746, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.6 kg CO2 eq., 0.6242857846188733
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 162 kg CO2 eq., 161.83264492753617
- Local Publishable Date
- 2025-05-31
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.8 mOhm - Ith 125 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Contactor Coil Voltage
- 24 V AC standard
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 6-10 W 50/60 Hz
- Mechanical Durability
- 4 Mcycles
- Number Of Poles
- 3P
- Pole Contact Composition
- 3 NO
- Product Name
- TeSys Deca
- Protective Treatment
- TH IEC 60068-2-30
- Range Of Product
- TeSys Deca
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 80 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 2422.14
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 127 mm
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Inrush Power In Va245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz, shocks contactor open8 Gn for 11 ms, vibrations contactor closed3 Gn, 5...300 Hz, shocks contactor closed10 Gn for 11 ms
Mounting Supportplate, rail
Power Dissipation Per Pole12.5 W AC-1, 5.1 W AC-3, 5.1 W AC-3e
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation CategoryAC-1, AC-3, AC-3e, AC-4
[Icw] Rated Short-time Withstand Current135 A 40 °C - 10 min for power circuit, 320 A 40 °C - 1 min for power circuit, 640 A 40 °C - 10 s for power circuit, 990 A 40 °C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit, 125 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Connections - Terminalscontrol circuit screw clamp terminals 2 1-4 mm²solid, control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end, power circuit connector 2 4-25 mm²flexible without cable end, power circuit connector 1 4-50 mm²flexible with cable end, power circuit connector 2 4-16 mm²flexible with cable end, power circuit connector 1 4-50 mm²solid, power circuit connector 2 4-25 mm²solidcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, power circuit connector 1 4-50 mm²flexible without cable end
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]8.233817789463416, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.07106103457479
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Contact CompatibilityM11
Device Short NameLC2D
Flame RetardanceV1 conforming to UL 94
Interlocking Typemechanical
Motor Starter Typereversing contactor
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typereversing contactor
RangeTeSys
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint193 kg CO2 eq.
Control Circuit Voltage24 V
Pep CodeENVPEP1102005EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %76
Width Nominal182 mm
Rated Thermal Current (Ith)125 A
Package Weight(Lbs)3.735 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 193.19721305128874
- Environmental Disclosure
- ENVPEP1102005EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-60 °C-40-60 °C, 60-70 °C with derating
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
