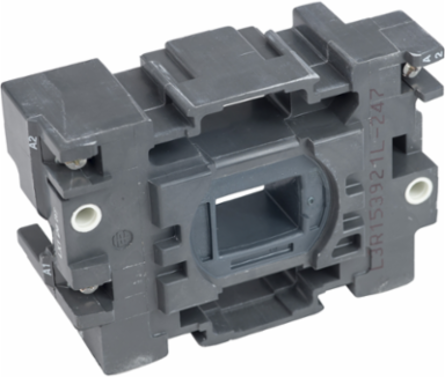

Schneider Electric LX1D6B7 TeSys Deca Contactor Coil 24V AC for 80A & 95A Contactors

MPN: LX1D6B7
PPN: SCH-LX1D6B7

$190.51

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for efficiency in industrial automation and control systems, this TeSys deca contactor coil from Schneider Electric operates at 24V AC and is specifically designed to complement both 80A and 95A contactors. By ensuring reliable operation within starters and contactors, this coil supports robust performance and seamless integration into various applications. Its reliable functionality makes it an essential component for controlling larger electrical loads with precision and ease.

Features

Engineered specifically for a 24V AC input at both 50Hz and 60Hz frequencies, this replacement coil provides a precise drop-in fit for matching TeSys Deca contactors. It ensures reliable, low-voltage control circuit operation, minimizing electrical stress and mitigating safety hazards for technicians working inside automated control panels.
This LX1D6B7 premium coil is a drop-in factory replacement explicitly tailored for Schneider Electric TeSys Deca (and legacy TeSys D) 3-pole 80-Amp and 95-Amp contactors. Its precise physical dimensions eliminate alignment issues during field servicing, allowing you to restore your specific motor starter or power switching chassis to original factory specifications without replacing the entire contactor assembly
Featuring the user-friendly TeSys snap-in architecture, this coil can be swapped out quickly by removing the contactor's faceplate without disconnecting the primary line or load power cabling. This service-friendly design allows facility technicians to minimize unexpected production line downtime and drastically simplifies routine preventive maintenance schedules.
The coil windings are fully encapsulated in a high-grade composite material that seals out ambient moisture, airborne dust, and industrial contaminants. This heavy-duty insulation prevents internal short-circuits and breakdown under continuous duty or rapid cycling applications, guaranteeing reliable mechanical performance in harsh manufacturing environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France

Complementary Attributes

Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
Maximum Operating Rate	3600 cyc/h 60 °C

Control Circuit Type	AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1924
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	1.22 Ohm 20 °C
Device Short Name	LX1D6
Heat Dissipation	6-10 W 50/60 Hz
Mechanical Durability	4 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	No
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Package Weight(Lbs)	313.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Hold-in Power Consumption In Va	26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Local Publishable Date	2026-07-13
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Energy Efficiency Optimized	False
Inductance Of Closed Circuit	0.08 H
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Pep Code	ENVPEP1102005EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504508000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	LC1D40, LC1D50, LC1D65...D95
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1102005EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1102005EN

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
