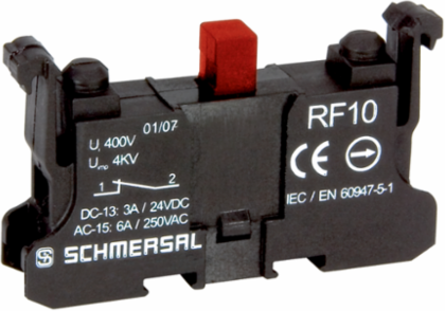

Schmersal 101195133 RF10.1 Contact Block, 44 mm Length, 400 V Rated Insulation Voltage, IP20
- MPN: 101195133
- PPN: SCM-101195133
CAD
$20.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RF10.1 Contact Block, 44 mm Length, 400 V Rated Insulation Voltage, IP20
Documentation & Downloads
Specifications
Key Specifications
- Length
- 44 mm
- Height
- 25.5 mm
Width9 mm
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 6 A
- Utilisation category DC-13
- 3 A
- Switching element
- Opener (NC)
- Switching frequency
- 1,200 /h
Utilisation category AC-15250 VAC
Utilisation category DC-1324 VDC
Suitable for low-voltages≥ 5 V / ≥ 1 mA
Switching principleSlow action
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Width
- 9 mm
Height25.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
General data - Features
- Number of normally closed (NC)
- 1
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 20 g
Climatic stressIEC 60068-2-30
Contact labelling11-12
Ambient conditions
- Degree of protection of the switch rooms
- IP40
- Ambient temperature
- -25 ... +75 °C
- Restistance to shock
- 30 g / 18 ms
Degree of protection of clips or terminalsIP20
Resistance to vibrations5 g
Resistant to vibration20 g / 10 ... 150 Hz
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm², rigid | 1.5 mm², flexible
- Tightening torque of Clips
- 1 Nm
Cable section, minimum0.5 mm², rigid | 0.5 mm², flexible
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Installation instructions
- pluggable
- Positive break travel
- 2 mm
- Mounting flange position
- 1; 2; 3
Mechanical life, minimum10,000,000 Operations
Contact opening1 mm
Approvals - Standards
- Certificates
- cURus
