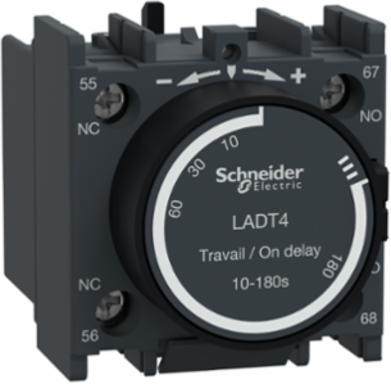

Schneider Electric LADT4 TeSys Deca Time Delay Auxiliary Contact Block, 1NO+1NC, 10-180s Delay
- MPN: LADT4
- PPN: SCH-LADT4
CAD
$243.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Custom-designed to integrate time-delayed operations directly into control logic, this mechanical auxiliary block provides an accurate On-Delay timing function. When the hosting device is energized, the module delays its state transition for a user-specified duration, making it ideal for managing staggered motor startups, conveyor sequencing, and simple industrial automation cycles without needing a standalone electronic timing relay.
- Belonging to the premium TeSys Deca (formerly TeSys D) ecosystem, this block mounts smoothly onto the front-face track of standard 3-pole and 4-pole TeSys Deca contactors (such as the LC1D09 through LC1D95 series) as well as CAD control relays. It utilizes a simple, tool-free snap-on mechanism that locks securely onto the contactor's moving carrier without modifying the base footprint or requiring external mounting space.
- This timer features a built-in rotary dial on the front face that allows operators to easily dial in an On-Delay window spanning 10 to 180 seconds. The internal pneumatic mechanism relies on regulated air displacement rather than delicate solid-state circuitry, ensuring reliable, repeatable delay performance that remains unaffected by electrical noise or voltage fluctuations across the control grid.
- The block is configured with a 1 NO (Normally Open) + 1 NC (Normally Closed) contact set with a 1.5 ms non-overlap window to ensure both contacts never close simultaneously. The contacts feature a thermal current rating of up to 10 A and a maximum insulation rating of 690 V AC conforming to IEC 60947-5-1, allowing them to easily pilot command loops, status indicators, PLC inputs, and secondary interlock coils.
- Equipped with multi-standard screw clamp terminals, this block accepts flexible or solid copper wiring up to 2.5 mm2 and can be torqued down cleanly with Flat, Philips No. 2, or Pozidriv No. 2 screwdrivers. It carries an IP20 finger-safe environmental protection rating and satisfies strict international safety regulation. This includes UL, CSA, and CE listings. This ensures your assembled control panels pass rigorous municipal and facility field inspections.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 61 mm |
|---|
Physical Attributes
| Color | dark grey |
|---|
Complementary Attributes
| Irms Rated Making Capacity | 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 |
|---|---|
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range | TeSys, TeSys Deca |
| Tightening Torque | 1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2 |
| Certificate Agency | IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1 |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.17376341204753004 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.49343699637388094 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Use Carbon Footprint | 3.1606 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2538 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Environmental Characteristic | normal environment |
| Mechanical Durability | 5 Mcycles |
| Pole Contact Composition | 1 NO + 1 NC |
| Product Name | TeSys Deca |
| Protection Type | gG fuse 10 A |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Timer Type | on delay |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Time delay module during 20 years on TeSys Deca contactors (front mounting), the ON time delays adjustable from 1 to 30s and the OFF time delays adjustable from 1 to 30s. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 37 |
| Width Nominal | 44 mm |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 3.1524 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 606.91 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 81.925 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 56.111 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 56.111 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | TeSys Deca, TeSys F |
| Time Delay Range | 10...180 s, 10...180 s |
| [Ie] Rated Operational Current | 6 A at 120 V AC-151.04 A at 690 V AC-15, 0.55 A at 125 V DC-130.1 A at 600 V DC-13 |
| Connections - Terminals | 2 1-2.5 mm²flexible without cable end 2 1-2.5 mm²rigid, screw clamp terminalsscrew clamp terminals 1 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²rigid |
| Carbon Footprint Of The Distribution Phase [A4] | 0.01994433894775979, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.01152272562406154, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 kg CO2 eq., 3.1606 |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Insulation Resistance | > 10 MOhm> 10 MOhm |
| Mounting Location | front |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | time delay auxiliary contact block |
| Protective Treatment | TH IEC 60068 |
| Shielding Continuity Terminal | without |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 4 kg CO2 eq. |
| Pep Code | ENVPEP110702EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 48 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Permissible Short-time Rating | 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms |
| Package Weight(Lbs) | 74.0 g |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 3.1606 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 22.321 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 663.02 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 606.91 |
| Customs Code | 8536509065 |
