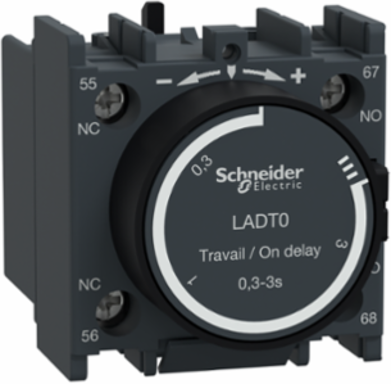

Schneider Electric LADT0 TeSys Deca Time Delay Auxiliary Contact Block, 1NO+1NC, 0.3-3s, Front, IP20
- MPN: LADT0
- PPN: SCH-LADT0
CAD
$243.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 0.3-3s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Features
- This auxiliary contact block delivers precise, highly repeatable delay-on-energization functionality adjustable anywhere from 0.3 s to 3 s. This tight control allows industrial automation engineers to flawlessly sequence motor start-ups, preventing massive grid inrush currents and eliminating the risk of nuisance circuit breaker tripping.
- Specifically designed for front-mounting on Schneider Electric TeSys D and TeSys Deca contactors (LC1D09 through LC1D95 and CAD control relays), it clicks into place with a completely tool-less installation. It integrates instantly into your existing motor control panel layout without consuming valuable DIN rail space, cutting your retrofitting and labor costs in half.
- Featuring a versatile split configuration of one Normally Open (1 NO) and one Normally Closed (1 NC) contact rated for AC-15 and DC-13 duty, this block allows you to simultaneously engage a secondary load and drop out a primary control line. This mechanical flexibility eliminates the need for bulky standalone timing relays, streamlining your control loop and shrinking your overall panel footprint.
- Fully compliant with global standards including IEC/EN 60947-5-1, UL 508, and CSA C22.2, this genuine Schneider Electric accessory satisfies the most demanding industrial safety regulations. Utilizing officially certified hardware ensures your control cabinets easily pass field inspections and maintain operational liability coverage.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 690 V AC 25-400 Hz
- Permissible Short-Time Rating
- 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms
- Time Delay Range
- 0.3-3 s
- Auxiliary Contacts Operation
- time delay on delay
- Ambient Air Temperature For Storage
- -60 to 80 °C (-76 to 176 °F)
- Width
- 44 mm (1.73 in)
- Depth
- 61 mm (2.40 in)
- Tightening Torque
- 1.7 N.m (15.05 lbf.in)
- Mechanical Durability
- 5 million cycles
- Standards
- UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5
- Compliance
- RoHS Compliant; REACh Compliant; Green Premium Product; PVC Free; Mercury Free
- Non-Overlap Time
- 1.5 ms on energisation and de-energisation, no overlap between NC and NO contacts
- Minimum Switching Current
- 5 mA
- Operating Environment
- normal environment
Rated Operational Current6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
Irms Rated Making Capacity140 A <= 690 V AC IEC 60947-5-1; 250 A <= 690 V DC IEC 60947-5-1
Contact Composition1 NO + 1 NC
Operating Ambient Temperature-40 to 70 °C (-40 to 158 °F)
Operating Altitude3000 m (9842.52 ft)
Height48 mm (1.89 in)
Connection Typescrew clamp terminals 1-2.5 mm² flexible and rigid, with or without cable end
IP Degree of ProtectionIP20 IEC 60529
Insulation Voltage690 V IEC 60947-5-1; 600 V UL 60947-5-1; 600 V CSA C22.2 No 60947-5-1
CertificationsIECEE CB Scheme; UL; CSA; CCC; EAC; UKCA
Minimum Switching Voltage17 V
Insulation Resistance> 10 MOhm
Colordark grey
