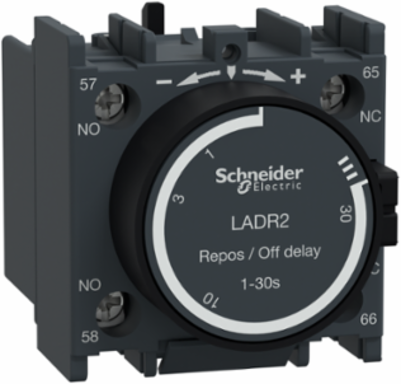

Schneider Electric LADR2 TeSys Deca Time Delay Auxiliary Contact Block, 1NO+1NC, 1-30s Delay
- MPN: LADR2
- PPN: SCH-LADR2
CAD
$243.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Equipped with an analog adjustment dial on the front face, this block features a versatile time-delay scale spanning from 1 to 30 seconds. Industrial electricians and HVAC technicians can dial in the exact delay required to keep cooling fans running after a motor stops, manage sequential conveyor deceleration, or time out safety interlocking processes with simple, highly predictable mechanical accuracy.
- This auxiliary add-on snaps directly onto the front of your existing TeSys D or TeSys Deca contactor (LC1D09 through LC1D150) and CAD control relays without requiring tools or taking up a single millimeter of valuable DIN rail space. The effortless clip-on mounting design integrates seamlessly into your current footprint, drastically accelerating control panel retrofits or factory assembly times.
- Featuring a dual-contact architecture with one Normally Open (NO) and one Normally Closed (NC) auxiliary contact, this block effortlessly handles multiple feedback pathways simultaneously. Rated up to 1.04A at 690V AC, it allows you to configure a delayed safety warning light, send an off-delay status signal directly to a PLC input card, or manage hardwired motor-starter interlocks using a single, compact mechanical device.
- ully certified to CSA C22.2, UL 60947-5-1, and IEC benchmarks, this auxiliary block features a remarkable mechanical durability threshold rated for 5 million operational cycles. Its multi-standard screw terminals accommodate rigid or flexible field wiring while its dustproof enclosure prevents particulate contamination ensuring reliable, spark-free signaling even inside demanding industrial environments or high-vibration control panels.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, Mexico, United States
Depth61 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Irms Rated Making Capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1, 250 A at <= 690 V DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Time Delay Range
- 1...30 s, 1...30 s
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Connections - Terminals
- screw clamp terminals 2 1-2.5 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²rigid, screw clamp terminalsscrew clamp terminals 1 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²rigid
- Permissible Short-time Rating
- 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.17376341204753004
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.49343699637388094
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 3.1606
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Environmental Characteristic
- normal environment
- Mechanical Durability
- 5 Mcycles
- Pole Contact Composition
- 1 NO + 1 NC
- Product Name
- TeSys Deca
- Protection Type
- gG fuse 10 A
- Range Of Product
- TeSys Deca
- Shielding Continuity Terminal
- without
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pep Code
- ENVPEP110702EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 48 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1524
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 606.91
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 81.925
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 56.111
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 56.111
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2
Certificate AgencyIECEE CB Scheme, UL, CSA, CCC, EAC, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1, 600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1
Non-overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Carbon Footprint Of The Distribution Phase [A4]0.01994433894775979, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01152272562406154, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 3.1606
Local Publishable Date2026-03-25
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Insulation Resistance> 10 MOhm> 10 MOhm
Mounting Locationfront
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typetime delay auxiliary contact block
Protective TreatmentTH IEC 60068
ReturnabilityYes
Software Versionv5.9.4
Timer Typeoff delay
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTime delay module during 20 years on TeSys Deca contactors (front mounting), the ON time delays adjustable from 1 to 30s and the OFF time delays adjustable from 1 to 30s.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %37
Width Nominal44 mm
[Ue] Rated Operational Voltage690 V AC 25...400 Hz
Package Weight(Lbs)74.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]3.1606
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]22.321
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]663.02
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]606.91
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3.8592674729932326
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP110702EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP110702EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- time delay auxiliary contact block
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002060
ETIM 9EC002060
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
