Dragon Tooth

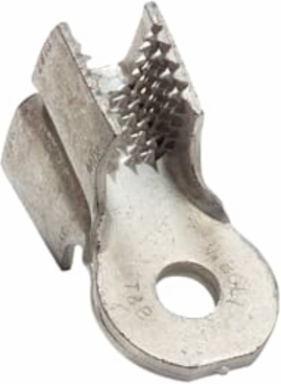

Dragon Tooth 204210-1H RING TERM CU 12-4 AWG 1/4 STUD DBL

  • MPN: 204210-1H
  • UPC: 786210878195
  • PPN: T-B-204210-1H
  • UNSPSC: 39121432

CAD

$11.31

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/4 Inch, Wire Range #12 AWG - #4 AWG 20,760 Circular Mil Area - 104,960 Circular Mil Area, Copper Alloy, Tin Plated, with Double Splices

Specifications

Classifications

WEEE CategoryProduct Not in WEEE Scope
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals

Additional Information

ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Effective Date19700729
Product NameSTA-KON AND CATAMOUNT TERMINAL
Special FunctionsDesigned to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Sub Brand / LabelDragon Tooth
Brand / LabelSta-Kon
MaterialCopper
Product TypeRing Terminal
StandardsUL E9809

Ordering

Country of OriginUnited States (US)
Selling Unit of Measureeach
RING TERM CU 12-4 AWG 1/4 STUD DBL
CAD$11.31/EA
