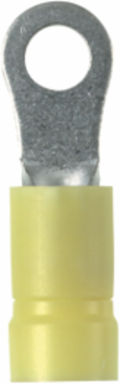

Panduit EV10-6RB-Q StrongHold™ EV10-6RB-Q Ring Terminal, Ylw, Vinyl, 11/100" Stud, 12-10 AWG, PK25
- MPN: EV10-6RB-Q
- UPC: 074983281824
- PPN: PAN-EV10-6RB-Q
- UNSPSC: 39121409
CAD
$0.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV10-6RB-D Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 12-10 AWG, compatible with #6 Stud (M3.5), are yellow in color, and come in packages of 500.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Minimum Metric Conductor Size (mm²)
- 1.5
- Minimum Wire Insulation Diameter (mm)
- 3.8
- Maximum Metric Conductor Size (mm²)
- 6
- Insulation Diameter (In.)
- 0.23
- Stud Hole Size (In.)
- #6
- Packaging Type
- Bag
- Tongue Length (In.)
- 0.53
- Flammability Rating
- UL 587 H
- Sub Brand
- StrongHold™
- Wire Strip Length (mm)
- 7.9
- Barrel Length (mm)
- 11.3
- Minimum Wire Insulation Diameter (In.)
- 0.15
- Outer Diameter (In.)
- 0.31
- Maximum Voltage (kV)
- 0.6
- Base Material
- Copper
- Tongue Length (mm)
- 13.3
- Product Type
- Ring Terminal
- Seam Type
- Butted
- Tongue Thickness (mm)
- 1
- Wire Strip Length (In.)
- 5/16
- Maximum Wire Insulation Diameter (mm)
- 5.8
- Insulation Material
- Vinyl
- Wire Size
- 12-10 AWG
Any Reason Not to SellN
Tongue Thickness (In.)0.04
Stud Hole Size (mm)3.5
Minimum Operating Temperature (°C)105
Insulation Diameter (mm)5.8
Barrel TypeFunnel Entry
Overall Length (mm)26.7
Maximum Operating Temperature (°F)221
Finish/CoatingTin-Plated
Tongue Width (In.)0.31
Overall Width (mm)7.9
Outer Diameter (mm)7.9
Overall Length (In.)1.05
Maximum Voltage (V)600
Maximum Operating Temperature (°C)105
For Use WithCT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-258
Maximum Wire Insulation Diameter (In.)0.23
Overall Width (In.)0.31
Color CodeYellow
Stud Size#6
Tongue Width (mm)7.9
Minimum Operating Temperature (°F)221
Barrel Length (In.)0.45
Copper Conductor Size12-10 AWG
Packaging Details
- UPC
- 07498328182
- Standard Package Volume Ft3
- 0.0100
- Std Package Height In
- .85
- Std Package Length In
- 4.55
- Std Package Width In
- 3.25
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.0996
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00074983281824
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281824
Standard Package Weight Pounds0.1450
Std Package Height MM21.59
Std Package Length MM115.57
Std Package Width MM82.55
UOM EA PKPK
GTIN Carton50074983281829
Standard Carton Weight Pounds1.4500
Std Carton Height MM110.49
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty250.0000
Pallet Volume0.000000
RoHS CompliantCompliant
