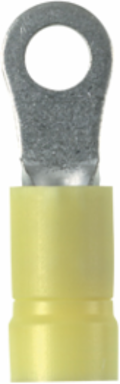

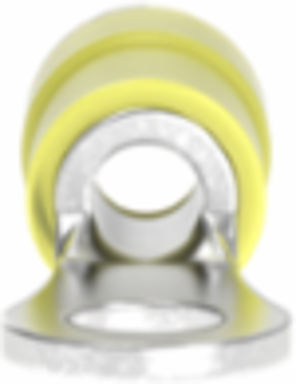

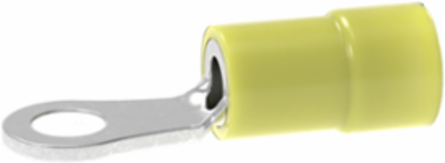

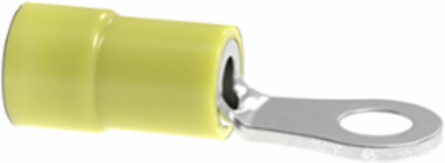

Panduit EV10-8RB-Q StrongHold™ EV10-8RB-Q Ring Terminal, Yellow, Vinyl, 3/20" Stud, 12-10 AWG, PK25
- MPN: EV10-8RB-Q
- UPC: 074983281831
- PPN: PAN-EV10-8RB-Q
- UNSPSC: 39121409
CAD
$0.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
StrongHold EV10-8RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #8 Stud, are yellow in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Overall Length (In.)
- 1.05
- Finish/Coating
- Tin-Plated
- Tongue Width (mm)
- 7.9
- Minimum Operating Temperature (°F)
- 221
- Stud Hole Size (mm)
- 4.1
- Outer Diameter (In.)
- 0.31
- Minimum Metric Conductor Size (mm²)
- 1.5
- Minimum Wire Insulation Diameter (mm)
- 4.3
- Maximum Wire Insulation Diameter (mm)
- 5.8
- Insulation Diameter (mm)
- 5.8
- Overall Width (In.)
- 0.31
- Color Code
- Yellow
- Tongue Length (In.)
- 0.53
- Barrel Length (mm)
- 11.3
- Overall Width (mm)
- 7.9
- Stud Hole Size (In.)
- #8
- Outer Diameter (mm)
- 7.9
- For Use With
- CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-260
- Tongue Width (In.)
- 0.31
- Minimum Operating Temperature (°C)
- 105
- Product Type
- Ring Terminal
- Maximum Voltage (kV)
- 0.6
- Copper Conductor Size
- 12-10 AWG
Any Reason Not to SellN
Barrel Length (In.)0.45
Wire Strip Length (mm)7.9
Packaging TypeBag
Barrel TypeFunnel Entry
Stud Size#8
Sub BrandStrongHold™
Maximum Metric Conductor Size (mm²)6
Maximum Operating Temperature (°F)221
Tongue Length (mm)13.3
Maximum Operating Temperature (°C)105
Minimum Wire Insulation Diameter (In.)0.17
Wire Strip Length (In.)5/16
Flammability RatingUL 587 H
Maximum Voltage (V)600
Tongue Thickness (In.)0.04
Overall Length (mm)26.7
Tongue Thickness (mm)1
Seam TypeButted
Insulation Diameter (In.)0.23
Maximum Wire Insulation Diameter (In.)0.23
Base MaterialCopper
Insulation MaterialVinyl
Wire Size12-10 AWG
Packaging Details
- UPC
- 07498328183
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .8
- Std Package Length In
- 4.55
- Std Package Width In
- 2.1
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00074983281831
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281831
Standard Package Weight Pounds0.0500
Std Package Height MM20.32
Std Package Length MM115.57
Std Package Width MM53.34
UOM EA PKPK
GTIN Carton50074983281836
Standard Carton Weight Pounds0.5000
Std Carton Height MM111.76
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty250.0000
Pallet Volume0.000000
RoHS CompliantCompliant
