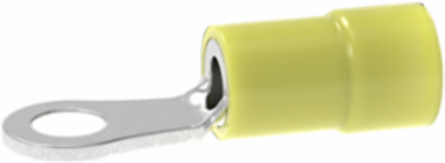

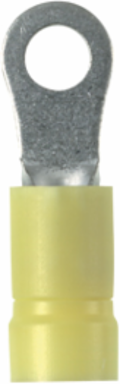

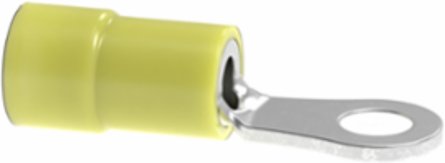

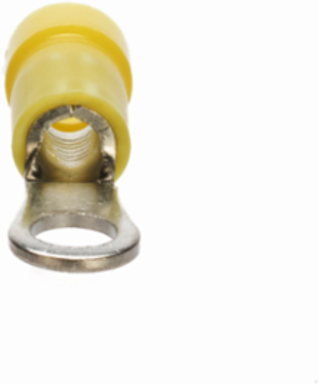

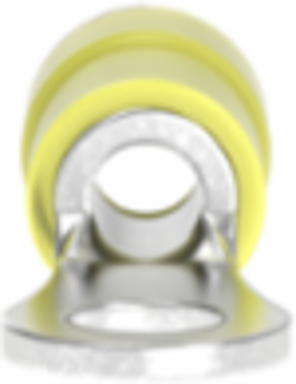

Panduit EV10-10RB-Q StrongHold™ EV10-10RB-Q Ring Terminal, Yellow, Vinyl, 1/5" Stud, 12-10 AWG, PK25
- MPN: EV10-10RB-Q
- UPC: 074983281855
- PPN: PAN-EV10-10RB-Q
- UNSPSC: 39121409
CAD
$0.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
StrongHold EV10-10RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #10 Stud, are yellow in color, and come in packages of 25.
Documentation & Downloads
Specifications
Additional
- Maximum Voltage
- 600 V (0.6 kV)
- Minimum Operating Temperature
- 105 °C (221 °F)
- Stud Size
- #10
- Wire Strip Length
- 5/16 in (7.9 mm)
- Barrel Length
- 0.45 in (11.3 mm)
- Overall Width
- 0.31 in (7.9 mm)
- Tongue Thickness
- 0.04 in (1 mm)
- Insulation Diameter
- 0.23 in (5.8 mm)
- Maximum Wire Insulation Diameter
- 0.23 in (5.8 mm)
- Material
- Copper, Vinyl
- Color
- Yellow
- Country of Origin
- Mexico
Maximum Operating Temperature105 °C (221 °F)
Wire Size12-10 AWG
Stud Hole Size#10 (4.8 mm)
Barrel TypeFunnel Entry
Overall Length1.05 in (26.7 mm)
Tongue Length0.53 in (13.3 mm)
Tongue Width0.31 in (7.9 mm)
Minimum Wire Insulation Diameter0.2 in (5.1 mm)
Seam TypeButted
FinishTin-Plated
Standards / ComplianceUL 587H, CSA Listed, RoHS Compliant, ARRA Compliant
