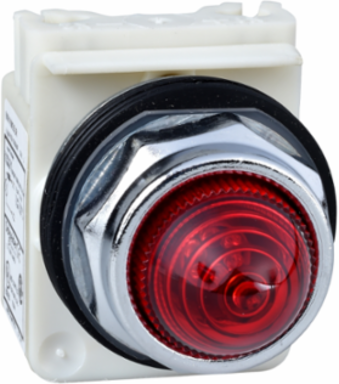

Schneider Electric 9001KP6R9 Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, 550-600V
Schneider Electric 9001KP6R9 Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, 550-600V
- MPN: 9001KP6R9
- UPC: 785901615385
- PPN: SCH-9001KP6R9
- UNSPSC: 39121534
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$192.34/ EA
Description
This Harmony 9001K, red pilot light with transformer and plastic dome is supplied with 550V to 600V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Physical Attributes
- Cad Overall Depth
- 42 mm
- Cad Overall Width
- 54 mm
- Size
- 30 mm
Cad Overall Height70 mm
Cap Operator Or Lens Colorred
Conformance Attributes
- Product Certifications
- NEMA, UL 508
StandardsEN/IEC 60947-5-4, JIS C 852, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, JIS C8201-1
Important Information Attributes
- Lens Type
- domed, domed plastic
- Light Source
- incandescent bulb, incandescent
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Bezel Material
- metal
- Cap Operator Or Lens Color
- red
- Device Short Name
- 9001K
- Mounting Diameter
- 30 mm
- Overvoltage Category
- class II conforming to IEC 61140
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Short Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Ith Conventional Free Air Thermal Current2
- 10 A
- Uimp Rated Impulse Withstand Voltage2
- 2.5 kV IEC 60947-1
- Medium Desc
- Pilot light, Harmony 9001K, metal, polycarbonate, domed, red, 30mm, 550-600V
- Product Kit Identifier
- N
- Connections Terminals3
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Ui Rated Insulation Voltage5
- 250 V 2)IEC 60947-1
- Us Rated Supply Voltage5
- 550...600 V AC
Light Block Supplyvia integral transformer 550...600 V AC 50/60 Hz 6 V), via integral transformer
Us Rated Supply Voltage2550...600 V, 550...600 V AC
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Return IndicatorN
Bulb BaseBA 9s
Compatibility Code9001K
Lens Materialpolycarbonate
Operating Positionany position
Package Weight Lbs226.796 g
Product Or Component Typepilot light
Range Of ProductHarmony 9001K
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Supply Frequency50...60 Hz
Tightening Torque0.8-0.8 N.m IEC 60947-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2250 V 2)IEC 60947-1
Connections Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Stocking FlagY
Global Commercial StatusEnd of commerc. - Block
Ith Conventional Free Air Thermal Current510 A
Uimp Rated Impulse Withstand Voltage52.5 kV IEC 60947-1
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-70 °C
- Packaging Made With Recycled Cardboard
- Yes
Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
China ROHS RegulationX
Ambient Air Temperature For Operation-25-70 °C
IP Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony 9001K
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
