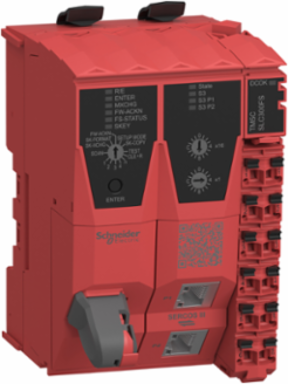

Schneider Electric TM5CSLC300FS Controller system, Modicon TM5 Safety, Safe logic CPU, SERCOS III interface, 20 nodes

Controller system, Modicon TM5 Safety, Safe logic CPU, SERCOS III interface, 20 nodes
  • MPN: TM5CSLC300FS
  • PPN: SCH-TM5CSLC300FS

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1576.57/ EA

Description

Controller system, Modicon TM5 Safety, Safe logic CPU, SERCOS III interface, 20 nodes

Specifications

Complementary

Maximum Cable Distance Between Devices
100 m between station
Height
99 mm
Power Consumption In W
4.3 W
Net Weight
0.208 kg
Function Available
support max 20 safety nodes
Number Of Devices
2 shielded RJ45 || 1 memory key slot
Type Of Cooling
fanless
Input Protection Type
integrated fuse (not interchangeable)
Realtime Clock
with non-volatile memory
Rated Voltage
24-24 V -15...20 %
Safety Reliability DataPFD < 1E-5 || PFH < 1E-9 || MTTFd > 100 years
Cycle Time1 ms
MarkingCE
Communication Network TypeSERCOS III Ethernet)
Transmission Rate100 Mbit/s for full duplex
Colourred
Local Signallingapplication run or machine expert - safety debug mode 1 LED green or orange) || authorization status 1 LED green) || configuration status (Ready) 1 LED orange) || firmware status 1 LED orange) || boot status / FS status 1 LED red) || memory key status 1 LED orange)
Width62.5 mm
Depth75 mm
Safety LevelSIL 3 IEC 61508 || SIL 3 IEC 62061 || PL = e ISO 13849-1 category 4

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2203008EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2203008EN

Environment

Product Certifications
cULus
Ambient Air Temperature For Operation
0-45 °C vertical installation) || 0-55 °C horizontal installation)
Relative Humidity
5-95 % without condensation
Operating Altitude
0...2000 m
StandardsEN 13849-1 || IEC 61131-2 || IEC 61508 || IEC 61511 || IEC 62061
Ambient Air Temperature For Storage-25-70 °C
Ip Degree Of ProtectionIP20

Specifications

Range Of Product
Modicon TM5
Device Application
safety logic controller
Product Or Component Typecontroller system
Reverse Polarity Protectionyes
