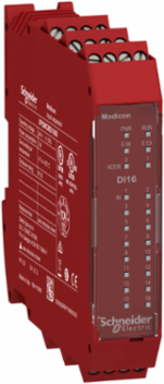

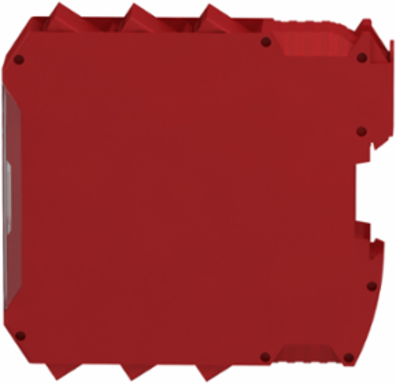

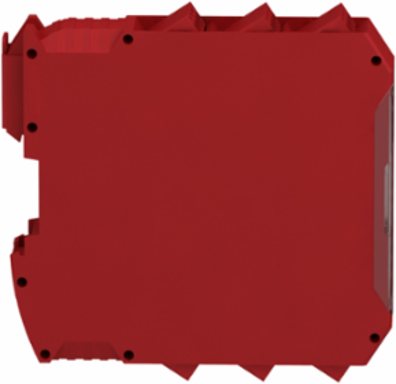

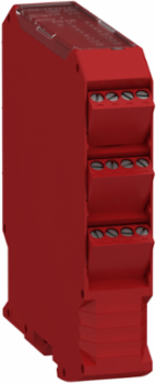

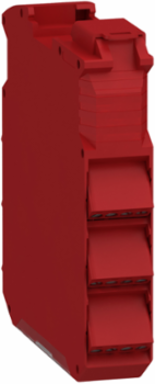

Schneider Electric XPSMCMDI1600 Modicon MCM Expansion Module - 16 Inputs, 24 VDC, IP20, 0.25 kg

  • MPN: XPSMCMDI1600
  • PPN: SCH-XPSMCMDI1600
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $753.11

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM Expansion Module - 16 Inputs, 24 VDC, IP20, 0.25 kg

    Features

    • Featuring 16 independent safety-rated digital inputs, the XPSMCMDI1600 allows you to consolidate multiple E-stops, light curtains, or interlocking switches into one compact 22.5mm slice. This high-density architecture significantly reduces required DIN rail space and lowers total hardware costs while maintaining the highest safety integrity for complex machinery.
    • Designed to reach Performance Level e (Category 4) per EN/ISO 13849-1 and SIL3 per IEC 61508, this expansion module ensures your control system remains compliant with the most rigorous international safety regulations. It provides the reliable, redundant monitoring necessary to protect personnel and high-value assets in high-risk industrial environments.
    • As a seamless expansion for the Magelis/Preventa XPSMCM modular system, this unit connects via the backplane expansion bus without the need for complex hard-wiring between modules. This "plug-and-play" scalability allows industrial engineers to adapt safety zones quickly as production lines evolve, minimizing downtime during system upgrades.
    • Equipped with spring or screw removable terminal blocks (depending on your configuration), the XPSMCMDI1600 facilitates rapid hot-swapping and simplified pre-wiring. This "wire-once" design eliminates the risk of wiring errors during field replacements, ensuring that safety-critical connections remain consistent and secure over the life of the machine.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Italy, United States
    Depth22.5 mm

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address16 LEDs yellow IN input status
    Safety Reliability DataDC > 99 %MTTFd < 100 years high, PFHd = 7.09E-9 1/h
    Certificate AgencyRCM, TÜV, cULus
    Carbon Footprint Of The Distribution Phase [A4]0.07140378293770877, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.200096356734653
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.2214464091827
    Local Publishable Date2026-04-30
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connectionscrew terminal
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Number Of Terminal Blocks6
    Power Consumption In W3 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityYes
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh262.8
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Modulemonitoring safety detection discrete input, monitoring safety dialogue discrete input
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3572695516641372, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.734847541811876
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Power Dissipation In W3 W
    Product Or Component Typesafe input expansion module
    Range Of ProductPreventa Safety automation
    Service Life20 year(s)
    Software Versionv6.2.5-6
    Total Lifecycle Carbon Footprint137 kg CO2 eq.
    Pep CodeENVPEP2606036_V1
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y1020
    Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
    Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
    Recyclability Potential In %2
    Width Nominal114.5 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Package Weight(Lbs)241.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-10-55 °C-10-55 °C
    Environmental DisclosureENVPEP2606036_V1
    Ip Degree Of ProtectionIP20 enclosure)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2606036_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint136.58506364233108
    Ambient Air Temperature For Storage-20-85 °C-20-85 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typesafe input expansion module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Output Attributes

    Discrete Output TypePNP
    Number Of Outputs4 test line control

    Input Attributes

    Discrete Input Typeisolated
    Number Of Inputs16 digital
    Discrete Input Voltage24 V DC
    Modicon MCM Expansion Module - 16 Inputs, 24 VDC, IP20, 0.25 kg
