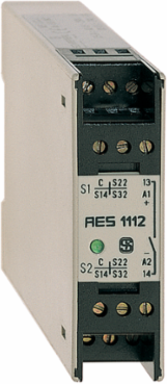

Schmersal 101128798 AES 1112.1 Safety Monitoring Module, 110 VAC, IP40, 1 NC Contact, 75mm Height
- MPN: 101128798
- PPN: SCM-101128798
CAD
$196.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
AES 1112.1 Safety Monitoring Module, 110 VAC, IP40, 1 NC Contact, 75mm Height
Features
- Monitoring of BNS range magnetic safety sensors
- 1 safety contact, STOP 0
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 110 mm
Height75 mm
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 24 VDC
Switching capacity, maximum2 A
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Rated operating voltage
- 110 VAC
- Rated control voltage at AC 50 Hz, maximum
- 121 VAC
- Rated control voltage at AC 60 Hz, maximum
- 121 VAC
- Contact resistance, maximum
- 0.1 Ω
- Drop-out delay in case of power failure, typically
- 80 ms
- Pull-in delay at automatic start, maximum, typically
- 100 ms
- Material of the contacts, electrical
- AgCdO
Thermal test current4 A
Rated AC voltage for controls, 50 Hz, minimum93.5 VAC
Rated AC voltage for controls, 60 Hz, minimum93.5 VAC
Electrical power consumption2.4 W
Note (Contact resistance)in new state
Drop-out delay in case of emergency, typically20 ms
Pull-in delay at RESET, typically20 ms
Note
- Note (General)
- Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 110 mm
Height75 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Degree of pollution
- 2
Overvoltage categoryIII
Electrical data - Digital Output
- Voltage, Utilisation category DC-12
- 24 VDC
Current, Utilisation category DC-120.1 A
General data - Features
- Stop-Category
- 0
- Automatic reset function
- Yes
- Integral system diagnostics, status
- Yes
- Number of normally closed (NC)
- 2
- Number of safety contacts
- 1
Wire breakage detectionYes
Reset after disconnection of supply voltageYes
Number of LEDs1
Number of normally open (NO)1
General data
- Standards
- BG-GS-ET-14 | BG-GS-ET-20 | EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-3 | BG-GS-ET-14
Gross weight160 g
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 1
- Notice
- for max. 50,000 switching cycles/year and max. 80% contact load
- Mission time
- 20 Year(s)
Performance Level, up toc
PFH value1.14 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1

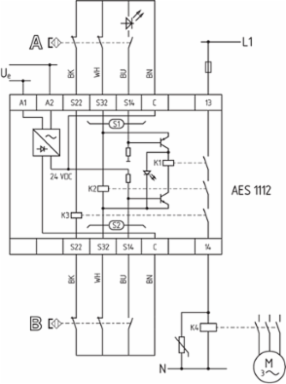

Wiring example
- Note (Wiring diagram)
- The wiring diagram is shown with guard doors closed and in de-energised condition. | To secure 2 guard doors up to PL c and Category 1 | Monitoring 2 guard door(s), each with a magnetic safety sensor of the BNS range | Monitoring one guard door: If only one magnetic safety sensor is connected to S1, the terminals S22, S32 and C of S2 must be bridged.
Other data
- Note (applications)
- Safety sensor | Guard system
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10...55 Hz, Amplitude 0.35 mm, ± 15 %
Degree of protection of the mounting spaceIP54
Ambient temperature+0 ... +55 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Terminal designationsIEC/EN 60947-1
Tightening torque of Clips0.6 Nm
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Switching capacity, minimum
- 10 VDC
- Switching capacity, maximum
- 250 VAC
Current, Utilisation category AC-153 A
Current, Utilisation category DC-132 A
Switching capacity, minimum10 mA
Switching capacity, maximum8 A
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Approvals - Standards
- Certificates
- BG | cULus
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Authorised operation
