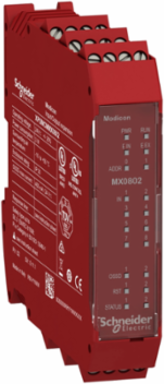

Schneider Electric XPSMCMMX0802 Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20

  • MPN: XPSMCMMX0802
  • PPN: SCH-XPSMCMMX0802
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $810.14

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20

    Features

    • This expansion module provides 8 additional digital safety inputs and 2 independent solid-state safety outputs, connecting seamlessly to a Magelis XPSMCM master controller via the integrated backplane bus. This modularity allows industrial engineers to scale safety systems across large automated lines without replacing the entire control architecture, significantly lowering hardware expansion costs.
    • Featuring an ultra-slim 22.5mm width, this module maximizes rail space within high-density control panels. The pluggable spring-terminal blocks facilitate lightning-fast wiring and tool-free replacement, reducing labor hours during initial assembly and minimizing production downtime during routine maintenance or system upgrades.
    • The front panel is equipped with a comprehensive set of status LEDs that provide real-time feedback on input states, output health, and internal bus communication. This instant visual diagnostic capability allows maintenance technicians to isolate wiring faults or device failures at a glance, bypassing complex software troubleshooting and speeding up the return-to-service time.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginItaly, United States
    Depth22.5 mm

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address8 LEDs yellow IN input status, 2 LEDs green/red OUT output status2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status
    Safety Reliability DataDC > 99 %MTTFd < 100 years high, PFHd = 5.72E-9 1/h
    Certificate AgencycULus, TÜV, RCM
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Load Typeresistive load
    Number Of Terminal Blocks6
    Power Consumption In W3 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityYes
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal114.5 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Package Weight(Lbs)251.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Modulemonitoring safety detection discrete input, monitoring safety dialogue discrete inputmonitoring safety actuators discrete output
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connectionscrew terminal
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Power Dissipation In W3 W
    Product Or Component Typesafe mixed I/O expansion module
    Range Of ProductPreventa Safety automation
    Service Life20 year(s)
    Sustainable PackagingNo
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-20-85 °C-20-85 °C
    Ip Degree Of ProtectionIP20 enclosure)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Reach Free ShvcYes
    China Rohs RegulationX
    Ambient Air Temperature For Operation-10-55 °C-10-55 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %

    General Attributes

    Product Or Component Typesafe mixed I/O expansion module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Output Attributes

    Discrete Output Current400 mA, 100 mA
    Discrete Output TypePNP
    Output Load60 Ohm
    Number Of Outputs4 test line control, safety outputs OSSD contactor/drive connection configurable diagnostic connection, 2
    Discrete Output Voltage24 V DC

    Input Attributes

    Discrete Input Typeisolated
    Number Of Inputs88 digital2 digital external device monitoring
    Discrete Input Voltage24 V DC

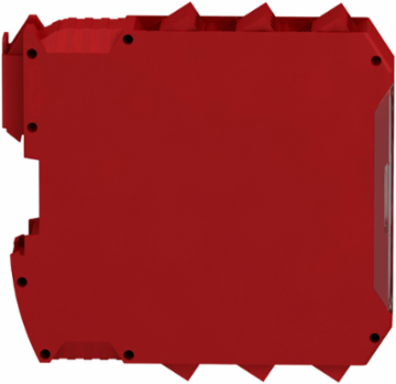

    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20

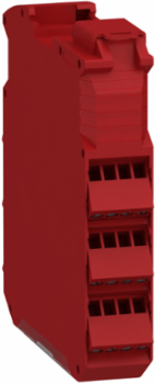

    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20

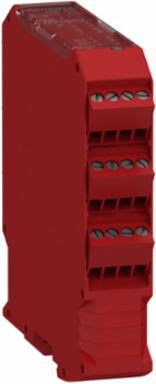

    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20
    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20
    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20
    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20
    Modicon MCM Safe Mixed I/O Expansion Module, 8 Inputs, 2 Outputs, IP20
