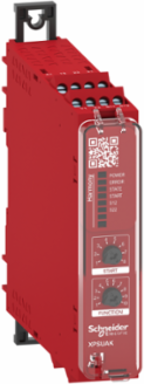

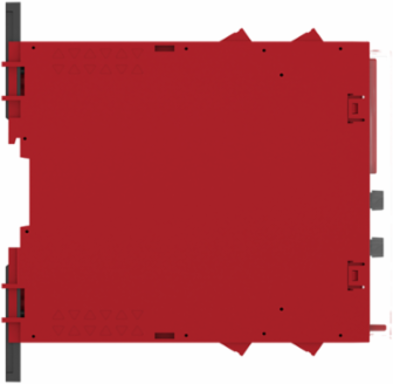

Schneider Electric XPSUAK12AP Harmony Safety Module, 24V AC/DC, PLe Cat 4, DIN Rail Mounted

  • MPN: XPSUAK12AP
  • PPN: SCH-XPSUAK12AP
  • UNSPSC: 32151705
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $418.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony Safety Module, 24V AC/DC, PLe Cat 4, DIN Rail Mounted

    Features

    • More than 40 different diagnostic messages, without additional fieldbus interface
    • Reduced down time of the machine due to messages
    • Status information about upcoming test intervals and amount of remaining cycles before reaching end of life time
    • ECODESIGN: Optimized Energy Efficiency: Reduction of 24 per cent of CO2 on the whole product life cycle
    • Reduce risk to an acceptable level
    • IP40 housing, IP20 terminals
    • DIN-rail and direct wall mounting possibility
    • More than 40 different diagnostic messages without additional fieldbus interface

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginUnited States
    Depth120 mm
    Weight280 g

    Complementary Attributes

    Ie Rated Operational Current3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
    Minimum Output Current10 mA relay output
    Ui Rated Insulation Voltage250 V 2)IEC 60947-1
    Us Rated Supply Voltage24 V AC - 15...10 %24 V DC - 20...20 %
    Maximum Line Resistance500 Ohm
    Minimum Output Voltage12 V relay output
    Uimp Rated Impulse Withstand Voltage4 kV II IEC 60947-1

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Electrical Circuit TypeNC pair, PNP pair, antivalent pair, OSSD pair
    Safety Levelcan reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
    Safety Reliability DataPFHd = 1.13E-09 IEC 62061PFHd = 1.13E-09 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.13E-09 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
    Certificate AgencyTÜV, cULus
    Carbon Footprint Of The End Of Life Phase C1 To C40.6121053636725591, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A35 kg CO2 eq., 4.970185268422243
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1811003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1915
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
    Power Consumption In Va5.0 VA 24 V AC 50/60 Hz
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Safety Automation
    Safety Module NameXPSUAK
    Sustainable PackagingNo
    Type Of Startautomatic/manual/monitored
    Database Version2023-02
    Height Nominal100 mm
    Input/Output Typesemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
    Customs Code8536410050
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), sensing mat/edges, proximity sensor monitoring, monitoring 1 PNP + 1 NPN sensor
    Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, monitoring of pressure-sensitive 4-wire protective devices
    Connections Terminalsremovable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
    Carbon Footprint Of The Distribution Phase A40.1299476986328325, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.010010860163188277
    Carbon Footprint Of The Use Phase B2 B3 B4 B665 kg CO2 eq., 64.56882742021409
    Local Publishable Date2026-08-06
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Mounting Support35 mm symmetrical DIN rail
    Power Consumption In W2.0 W 24 V DC
    Product Or Component Typesafety module
    ReturnabilityYes
    Software Versionv6.2.2
    Total Lifecycle Carbon Footprint70 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal22.5 mm
    Nbr. Of Units In Pkg.1
    Ith Conventional Free Air Thermal Current8 A
    Functional Unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh175.2

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C, -25-55 °C, -25-55 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1811003EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1811003EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint70.29107661110491
    Environmental DisclosureENVPEP1811003EN
    Ip Degree Of ProtectionIP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % non-condensing
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typesafety module
    Range Of ProductHarmony Safety Automation

    ETIM

    ETIM 8EC001449
    ETIM 10EC001449
    ETIM 9EC001449

    Output Attributes

    Number Of Outputs3 on/off configurable pulsed output

    Input Attributes

    Input Compatibilitynormally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
    Input Protection Typeinternal, electronic
    Synchronisation Time Between Inputs0.5 s, 2 s, 4 s
    Number Of Inputs2 safety input 24 V DC 5
