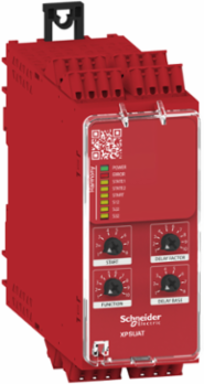

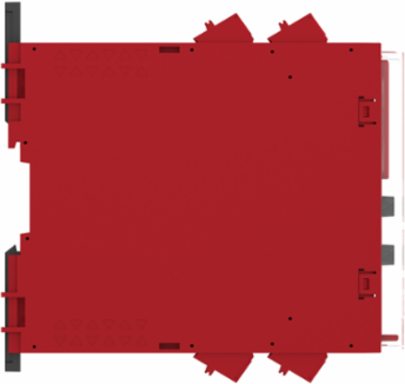

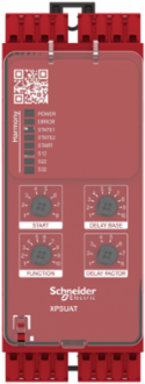

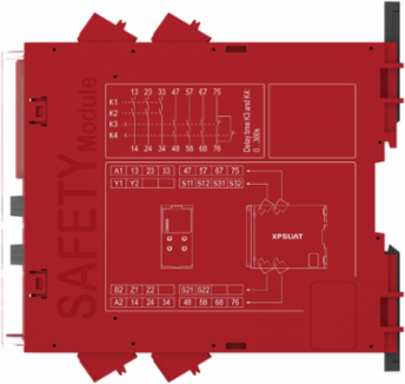

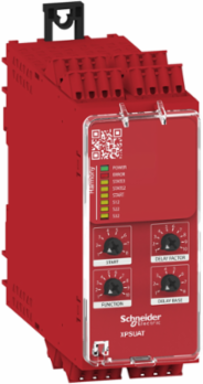

Schneider Electric XPSUAT33A3AC Safety Module Harmony XPSU, Cat 4, 48-240V AC/DC, Spring, 0.35 kg, 45mm x 100mm x 120mm
- MPN: XPSUAT33A3AC
- PPN: SCH-XPSUAT33A3AC
CAD
$835.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safety Module Harmony XPSU, Cat 4, 48-240V AC/DC, Spring, 0.35 kg, 45mm x 100mm x 120mm
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 20 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage24 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Circuit Type
- NC pair, PNP pair, antivalent pair, OSSD pair
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1, can reach SILCL 3 for normally open relay contact IEC 62061, can reach SIL 3 for normally open relay contact IEC 61508, can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Reliability Data
- PFHd = 1.47E-09 for SS0 IEC 62061, PFHd = 1.48E-09 for SS1 IEC 62061, PFHd = 1.47E-09 for SS0 IEC 61508-1, PFHd = 1.48E-09 for SS1 IEC 61508-1, SFF > 99% IEC 61508-1MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.47E-09 for SS0 ISO 13849-1, PFHd = 1.48E-09 for SS1 ISO 13849-1, HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
- [Ie] Rated Operational Current
- 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
- Input/Output Type
- pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-related, semiconductor output 24 V DC, 20 mA Z2, not safety-related
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.0056016688906328, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 8.165304369550828
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1811003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1915
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Associated Fuse Rating
- 10 A gG NO relay output circuit IEC 60947-1
- Power Consumption In Va
- 10 VA 240 V AC 50/60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Safety Automation
- Safety Module Name
- XPSUAT
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 139 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 350.4
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 45 mm
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Package Weight(Lbs)
- 460.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), sensing mat/edges, proximity sensor monitoring, monitoring 1 PNP + 1 NPN sensor
Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, monitoring of pressure-sensitive 4-wire protective devices
Certificate AgencyTÃœV, cULus

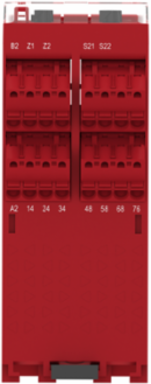

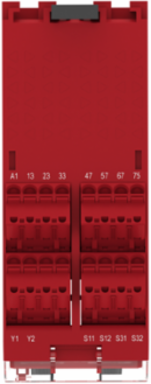

Connections - Terminalsremovable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The Distribution Phase [A4]0.21348550489679624, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.016446413125237883
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]129 kg CO2 eq., 129.13765484042818
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN

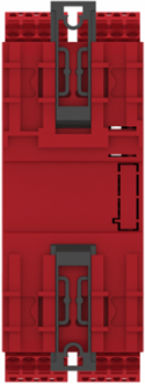

Mounting Support35 mm symmetrical DIN rail
Power Consumption In W4 W 48 V DC
Product Or Component Typesafety module
ReturnabilityNo
Software Versionv6.2.2
Time Delay Range0...900 s off
Type Of Startautomatic/manual/monitored
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C, -25-85 °C, -25-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 138.53849279689166
- Environmental Disclosure
- ENVPEP1811003EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP54 mounting area)IEC 60947-1, IP40 housing)IEC 60947-1, IP20 terminals)IEC 60947-1
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
