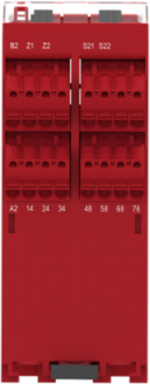

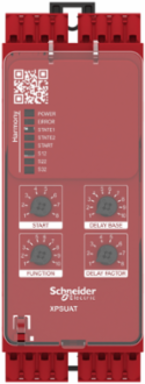

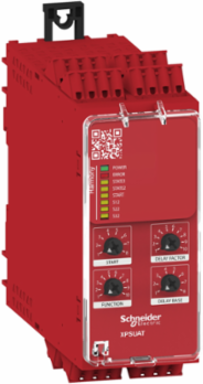

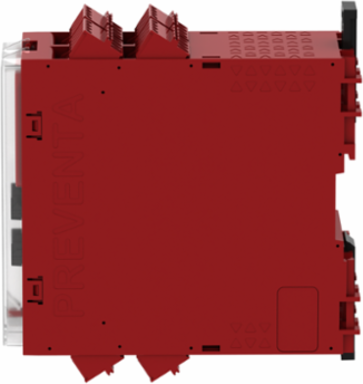

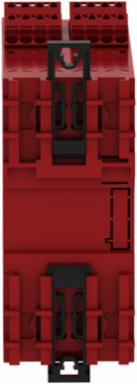

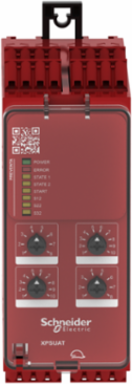

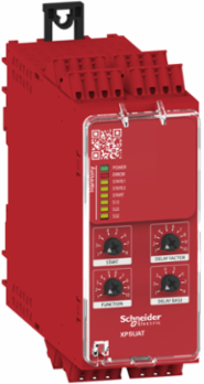

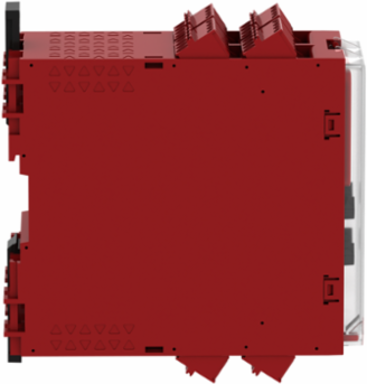

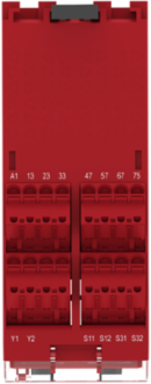

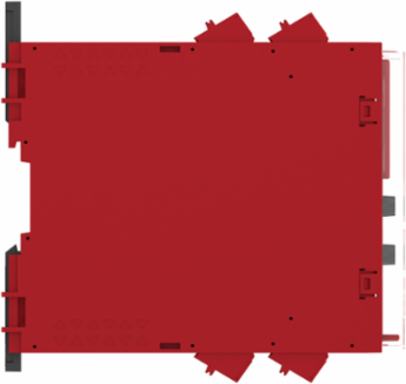

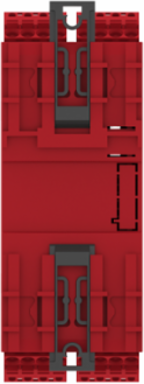

Schneider Electric XPSUAT13A3AC Harmony Safety Module, Cat4, 24V AC/DC, Delayed Outputs, 0.350kg
- MPN: XPSUAT13A3AC
- PPN: SCH-XPSUAT13A3AC
CAD
$760.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Safety Module, Cat4, 24V AC/DC, Delayed Outputs, 0.350kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 20 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage24 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Circuit Type
- NC pair, PNP pair, antivalent pair, OSSD pair
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Reliability Data
- PFHd = 0.94E-09 for SS0 IEC 62061, PFHd = 0.95E-09 for SS1 IEC 62061, PFHd = 0.94E-09 for SS0 IEC 61508-1, PFHd = 0.95E-09 for SS1 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1PFHd = 0.94E-09 for SS0 ISO 13849-1PFHd = 0.95E-09 for SS1 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
- [Ie] Rated Operational Current
- 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2083804167362207, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.01605312933311263
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 97 kg CO2 eq., 96.85324113032115
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 3 W 24 V DC
- Product Or Component Type
- safety module
- Returnability
- Yes
- Software Version
- v6.2.2
- Time Delay Range
- 0...900 s off
- Type Of Start
- automatic/manual/monitored
- Pep Code
- ENVPEP1811003EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Height Nominal
- 100 mm
- [Ith] Conventional Free Air Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Input/Output Type
- pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-relatedsemiconductor output 24 V DC, 20 mA Z2, not safety-related
- Package Weight(Lbs)
- 455.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), sensing mat/edges, proximity sensor monitoring, monitoring 1 PNP + 1 NPN sensor
Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, monitoring of pressure-sensitive 4-wire protective devices
Certificate AgencyTÃœV, cULus
Connections - Terminalsremovable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9815546724606395, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.970047091148527
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
Power Consumption In Va6.5 VA 24 V AC 50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAT
Sustainable PackagingNo
Total Lifecycle Carbon Footprint106 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Italy, IT
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Italy, IT
Width Nominal45 mm
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
[Us] Rated Supply Voltage24 V AC - 15...10 %24 V DC - 20...20 %
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410060
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C, -25-85 °C, -25-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1811003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint106.02927643999966
Environmental DisclosureENVPEP1811003EN
Ip Degree Of ProtectionIP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 20 mA relay output
- Number Of Outputs
- 4 on/off configurable pulsed output
Minimum Output Voltage24 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
- Number Of Inputs
- 2 positive safety input 24 V DC 81 negative safety input
Synchronisation Time Between Inputs0.5 s, 2 s, 4 s
Maximum Response Time On Input Open20 ms
