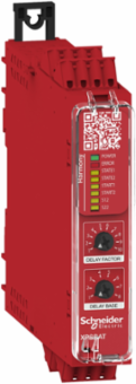

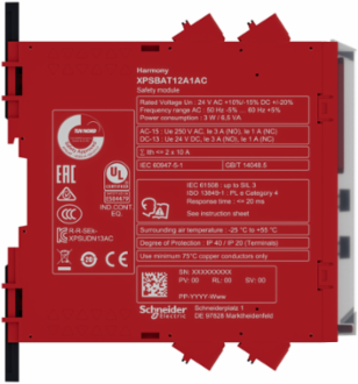

Schneider Electric XPSBAT12A1AC Harmony Safety Relay with Time Delay Output, 24V AC/DC, DIN Rail Mount, PLe
- MPN: XPSBAT12A1AC
- PPN: SCH-XPSBAT12A1AC
CAD
$589.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, RFID safety switch and Safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 control outputs, 2 NO immediate, 3 NO configurable and 1 NC configurable safety output, 1 diagnostic output. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 20 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage24 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Circuit Type
- NC pair, OSSD pair
- Local Signalling
- LED green power power ON, LED red error error, LED yellow state 1 safety output instantaneousLED yellow state 2 safety output delayedLED yellow start 1 start, LED yellow start 2 startLED yellow S12 safety input S12LED yellow S22 safety input S22
- Safety Module Application
- for emergency stop and protective guard applications, for OSSD monitoring
- Certificate Agency
- TÜV, cULus
- Connections - Terminals
- removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6383384506870975
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.1831932084974826
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-05-03
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 2 W 24 V DC
- Product Or Component Type
- safety module
- Returnability
- No
- Software Version
- v6.2.2
- Time Delay Range
- 0...900 s off
- Type Of Start
- automatic/manual/monitored
- Pep Code
- ENVPEP1811003EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Height Nominal
- 100 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Input/Output Type
- semiconductor output 24 V DC, 20 mA Z1, not safety-related
- Package Weight(Lbs)
- 292.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE)
Safety Levelcan reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
Safety Reliability DataPFHd = 0.98E-09 for SS0 IEC 62061, PFHd = 0.96E-09 for SS1 IEC 62061, PFHd = 0.98E-09 for SS0 IEC 61508-1, PFHd = 0.96E-09 for SS1 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1PFHd = 0.98E-09 for SS0 ISO 13849-1PFHd = 0.96E-09 for SS1 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
[Ie] Rated Operational Current5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
Carbon Footprint Of The Distribution Phase [A4]0.13551688571709677, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.010439897027324918, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]65 kg CO2 eq., 64.56882742021409
Local Publishable Date2026-01-12
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2110
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating6 A gG NO relay output circuit IEC 60947-1
Power Consumption In Va5 VA 24 V AC 50/60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Safety Automation
Safety Module NameXPSBAT
Sustainable PackagingNo
Total Lifecycle Carbon Footprint71 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh175.2
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Italy, IT
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Italy, IT
Width Nominal22.5 mm
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
[Us] Rated Supply Voltage24 V AC - 15...10 %24 V DC - 20...20 %
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-55 °C-25-55 °C
- Environmental Disclosure
- ENVPEP1811003EN
- Ip Degree Of Protection
- IP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint70.5363158621431
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1811003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 20 mA relay output
- Number Of Outputs
- 3 on/off configurable pulsed output
Minimum Output Voltage24 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, mechanical contact ISO 14119OSSD pair IEC 61496-1-2, normally closed circuit ISO 13850, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
- Number Of Inputs
- 2 positive safety input 24 V DC 5
Synchronisation Time Between Inputs0.5 s, 2 s
Maximum Response Time On Input Open20 ms
