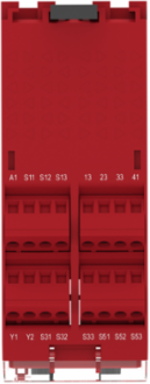

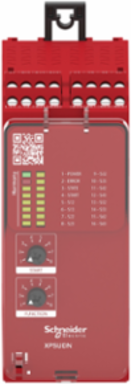

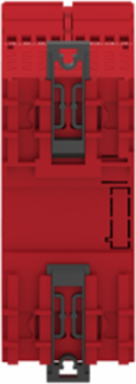

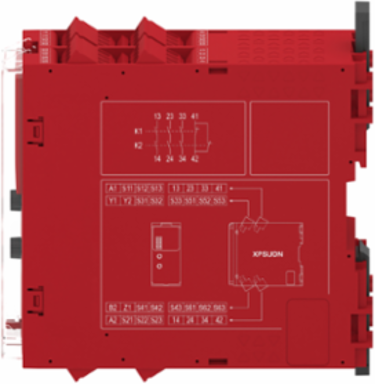

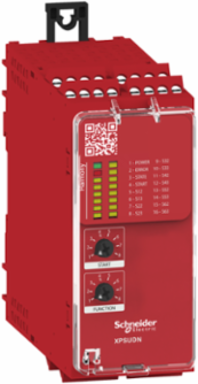

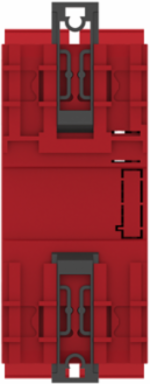

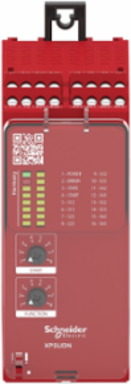

Schneider Electric XPSUDN33AP Harmony Safety Module, 6 Inputs, 48-240V AC/DC, DIN Rail Mounted
- MPN: XPSUDN33AP
- PPN: SCH-XPSUDN33AP
CAD
$649.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Safety Module, 6 Inputs, 48-240V AC/DC, DIN Rail Mounted
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 10 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage12 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Associated Fuse Rating
- 10 A gG NO relay output circuit IEC 60947-1, 4 A gG NC relay output circuit IEC 60947-1
- Function Of Module
- emergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), proximity sensor monitoring
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1, can reach SILCL 3 for normally open relay contact IEC 62061, can reach SIL 3 for normally open relay contact IEC 61508, can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Reliability Data
- PFHd = 1.36E-09 IEC 62061, PFHd = 1.36E-09 IEC 61508-1, SFF > 99% IEC 61508-1MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.36E-09 ISO 13849-1, HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
- [Ie] Rated Operational Current
- 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
- Carbon Footprint Of The Distribution Phase [A4]
- 0.19399335010187138, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.014944784100759643
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 194 kg CO2 eq., 193.7064822606423
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Power Consumption In Va
- 25 VA 240 V AC 50/60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Safety Automation
- Safety Module Name
- XPSUDN
- Sustainable Packaging
- No
- Type Of Start
- automatic/manual/monitored
- Pep Code
- ENVPEP1811003EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Height Nominal
- 100 mm
- [Ith] Conventional Free Air Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Input/Output Type
- semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
- Package Weight(Lbs)
- 418.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Circuit TypeNC pair, PNP pair, antivalent pair, OSSD pair
Local SignallingLED (green) for power ON, LED (red) for error, LED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23, LED (yellow) for safety input S32, LED (yellow) for safety input S33, LED (yellow) for safety input S42, LED (yellow) for safety input S43, LED (yellow) for safety input S52, LED (yellow) for safety input S53, LED (yellow) for safety input S62, LED (yellow) for safety input S73
Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring
Certificate AgencyTÃœV, cULus

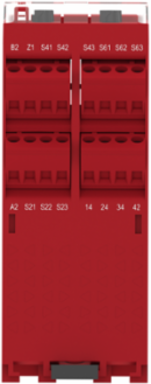

Connections - Terminalsremovable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.913785864339749, 0.9 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.4197765792874915
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Mounting Support35 mm symmetrical DIN rail
Power Consumption In W6 W 48 V DC
Product Or Component Typesafety module
ReturnabilityNo
Software Versionv6.2.2
Total Lifecycle Carbon Footprint202 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh525.6
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Italy, IT
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Italy, IT
Width Nominal45 mm
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
[Us] Rated Supply Voltage48...240 V AC/DC - 10...10 %
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC, -25-55 °C at 24 V DC-25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC
- Ip Degree Of Protection
- IP20 terminals)IEC 60947-1, IP40 housing)IEC 60947-1, IP54 mounting area)IEC 60947-1
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1811003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-85 °C, -25-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint202.2489828384722
Environmental DisclosureENVPEP1811003EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1811003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Number Of Outputs
- 7 on/off configurable pulsed output
Minimum Output Voltage12 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
- Number Of Inputs
- 6 safety input 24 V DC 5
Synchronisation Time Between Inputs0.5 s, 2 s, 2.2 s, 4 s
Maximum Response Time On Input Open20 ms
