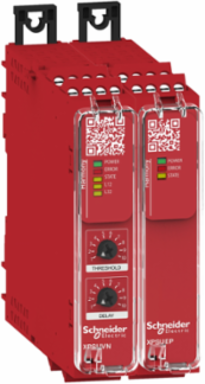

Schneider Electric XPSUVN11AP Harmony XPS Safety Module, Zero Speed Monitoring, 24V AC/DC, 22.5mm Width
- MPN: XPSUVN11AP
- PPN: SCH-XPSUVN11AP
CAD
$881.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

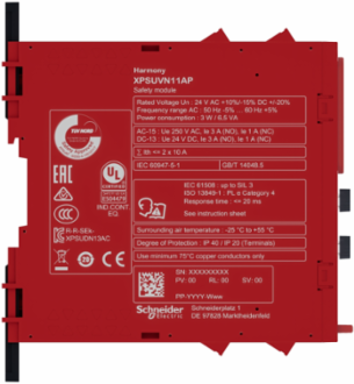

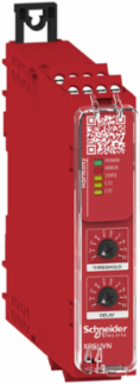

This safety relay is designed for zero speed monitoring with delayed access to dangerous area. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 3 safety inputs, 1 NO output configurable between 0,5s and 60s, and 2solid state diagnostic outputq with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 3 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061 and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth120 mm
Complementary Attributes
- Minimum Output Current
- 10 mA relay output
Minimum Output Voltage5 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Function Of Module
- monitoring 3-phase motor, monitoring 3-phase motor with star-delta starting, monitoring 3-phase motor with variable number of poles, monitoring 3-phase motor with variable number of poles and star-delta starting, monitoring dc motor, monitoring servo motor, monitoring 3-phase motor supplied by variable speed drive, monitoring 3-phase motor supplied by servo drive, controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST
- Safety Reliability Data
- PFHd = 2.39E-9 1/h IEC 62061PFHd = 2.39E-9 1/h IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg = 98.9 % ISO 13849-1, PFHd = 2.39E-9 1/h ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
- Certificate Agency
- TÜV, cULus
- Connections - Terminals
- removable screw terminal block solid or flexible 0.2...2.5 mm², removable screw terminal block flexible with ferrule 0.25...2.5 mm² single conductorremovable screw terminal block solid or flexible 0.2...1.5 mm² twin conductorremovable screw terminal block flexible with ferrule 2 x 0.25...1 mm² without cable end, with bezelremovable screw terminal block flexible with ferrule 2 x 0.5...1.5 mm² with cable end, with bezel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5661974613971172
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 4.597421373290575
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-05-03
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In Va
- 5.5 VA
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Safety Automation
- Safety Level
- can reach PL e/category 3 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508
- Safety Module Name
- XPSUVN
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 175.2
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 22.5 mm
- [Ui] Rated Insulation Voltage
- 690 V phase to phase 2)IEC 60947-1400 V phase to earth 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 %24 V DC - 20...20 %
- Package Weight(Lbs)
- 263.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local SignallingLED green power power ON, LED red error error, LED yellow state statusLED yellow L12 input line comparison, LED yellow L32 input line comparison
Time Delay0., 1 s, 2 s, 3 s, 5 s, 8 s, 12 s, 20 s, 35 s, 60 s
[Ie] Rated Operational Current5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
Carbon Footprint Of The Distribution Phase [A4]0.12020162123537007, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.009260045650949157, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]65 kg CO2 eq., 64.56882742021409
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2110
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating6 A gG relay output IEC 60947-1
Number Of Additional Circuits2 solid state outputs
Power Consumption In W2.0 W
Product Or Component Typesafety module
ReturnabilityYes
Safety Module Applicationfor zero speed detection
Software Versionv6.2.2
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current6 A NO relay output circuit
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 69.86190792178812
- Environmental Disclosure
- ENVPEP1811003EN
- Ip Degree Of Protection
- IP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1811003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001448
ETIM 9EC001448
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Output Type
- relay, 1 NO, volt-free
Minimum Output Voltage5 V relay output
Input Attributes
- Input Detection Threshold
- 50 mV, 65 mV, 85 mV, 110 mV, 140 mV, 180 mV, 230 mV, 300 mV, 400 mV, 500 mV
Input Voltage690 V
