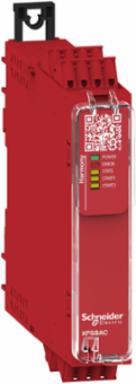

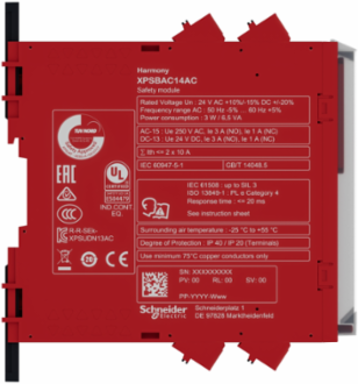

Schneider Electric XPSBAC14AC Harmony XPS Safety Module, 24V AC/DC, PLe, 0.200 kg
- MPN: XPSBAC14AC
- PPN: SCH-XPSBAC14AC
- UNSPSC: 32151802
CAD
$328.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
Features
- Designed for monitoring Emergency stop and Guard switch
- PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508
- Spring removable terminal blocks on 2 rows on both top and bottom sides
- Implement safety functions
- Reduce risk to an acceptable level
- IP40 housing, IP20 terminals
- DIN-rail and direct wall mounting possibility
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 120 mm |
| Weight | 301 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact |
|---|---|
| Minimum Output Voltage | 5 V relay output |
| Uimp Rated Impulse Withstand Voltage | 4 kV II IEC 60947-1 |
| Minimum Output Current | 10 mA relay output |
|---|---|
| Ui Rated Insulation Voltage | 300 V 2)IEC 60947-1 |
| Us Rated Supply Voltage | 24 V AC - 15...10 %24 V DC - 20...20 % |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Function Of Module | emergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches |
| Safety Level | can reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508 |
| Connections Terminals | removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| Carbon Footprint Of The Distribution Phase A4 | 0.13969377603029492, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.010761674675427399, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 48 kg CO2 eq., 48.426620565160576 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1811003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2110 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Associated Fuse Rating | 10 A gG NO relay output circuit IEC 60947-1 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Power Consumption In W | 1.5 W 24 V DC |
| Product Or Component Type | safety module |
| Response Time | 150 ms at 24 V AC80 ms at 24 V DC |
| Safety Module Application | for emergency stop and protective guard applications |
| Software Version | v6.2.2 |
| Terminal Identifier | power supply |
| Type Of Start | automatic/manual/monitored |
| Database Version | 2023-02 |
| Height Nominal | 100 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 6 A |
| Functional Unit Description | To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 131.4 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | LED green power power ON, LED red error error, LED yellow state statusLED yellow start1 start input, LED yellow start2 start input |
| Safety Reliability Data | PFHd = 0.95E-09 for normally open relay contact IEC 62061, PFHd = 0.95E-09 for normally open relay contact IEC 61508-1, SFF > 99% for normally open relay contact IEC 61508-1PFHd = 0.95E-09 for normally closed relay contact ISO 13849-1PFHd = 0.95E-09 for normally closed relay contact IEC 62061HFT=0 for normally closed relay contact IEC 61508-1, PFHd = 0.95E-09 for normally closed relay contact IEC 61508-1, SFF > 60% for normally closed relay contact IEC 61508-1, type = B for normally closed relay contact IEC 61508-1MTTFd > 30 years for normally open relay contact ISO 13849-1, Dcavg >= 99 % for normally open relay contact ISO 13849-1, PFHd = 0.95E-09 for normally open relay contact ISO 13849-1HFT = 1 for normally open relay contact IEC 62061, SFF > 99% for normally open relay contact IEC 62061, HFT = 1 for normally open relay contact IEC 61508-1, type = B for normally open relay contact IEC 61508-1, MTTFd > 30 years for normally closed relay contact ISO 13849-1, DC > 60 % for normally closed relay contact ISO 13849-1, HFT=0 for normally closed relay contact IEC 62061, SFF > 60% for normally closed relay contact IEC 62061 |
| Certificate Agency | TÜV, cULus |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.7 kg CO2 eq., 0.658013265948001 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 5 kg CO2 eq., 5.342949163553912 |
| Local Data Status | Publishable |
| Pre Comm Date | 2021-05-03 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Circuit Type | NC pair |
| Power Consumption In Va | 3.5 VA 24 V AC 50/60 Hz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony Safety Automation |
| Returnability | No |
| Safety Module Name | XPSBAC |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 55 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 22.5 mm |
| Customs Code | 8536410050 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-55 °C, -25-55 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1811003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1811003EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 54.57803844536821 |
| Environmental Disclosure | ENVPEP1811003EN |
| Ip Degree Of Protection | IP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | safety module |
|---|
| Range Of Product | Harmony Safety Automation |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|---|
| ETIM 10 | EC001449 |
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Number Of Outputs | 0 |
|---|
Input Attributes
| Input Compatibility | normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850 |
|---|---|
| Number Of Inputs | 0 |
| Input Protection Type | internal, electronic |
|---|---|
| Synchronisation Time Between Inputs | unlimited |
