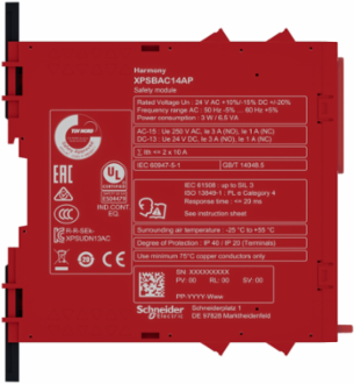

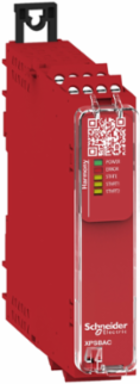

Schneider Electric XPSBAC14AP Harmony Safety Module for Emergency Stop, 24V AC/DC, 22.5mm Width
- MPN: XPSBAC14AP
- PPN: SCH-XPSBAC14AP
CAD
$328.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1, SILCL 3 conforming to IEC62061, SIL 3 conforming to IEC61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
Features
- Engineered for high-risk applications, the XPSBAC14AP supports monitoring of Emergency Stop pushbuttons and limit switches up to Performance Level e (PLe) and Safety Integrity Level 3 (SIL 3). This ensures your machinery meets the highest global safety standards, providing immediate power-cut capabilities to prevent operator injury and equipment damage during a critical fault.
- Part of the Preventa XPS Universal range, this module features an ultra-slim profile that maximizes cabinet real estate without sacrificing functionality. This allows industrial engineers to consolidate safety logic in crowded enclosures, reducing the overall footprint of the automation system while maintaining easy access to terminals.
- Designed for flexible integration, this module operates seamlessly on both 24V AC and 24V DC power supplies. This "universal" input capability simplifies inventory management for maintenance teams and ensures compatibility with various sensor types and power architectures commonly found in modern manufacturing plants.
- The XPSBAC14AP features a unique side-link connector that allows for a direct connection to a PLC via a single digital input. By transmitting detailed status data and predictive maintenance info without requiring complex fieldbus wiring, you can identify the exact cause of a trip in seconds, drastically reducing downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth120 mm
Complementary Attributes
- Minimum Output Current
- 10 mA relay output
Minimum Output Voltage5 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Function Of Module
- emergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Certificate Agency
- TÜV, cULus
- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.658013265948001
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.342949163553912
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-05-03
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Circuit Type
- NC pair
- Power Consumption In Va
- 3.5 VA 24 V AC 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Safety Automation
- Returnability
- Yes
- Safety Module Name
- XPSBAC
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 55 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 131.4
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 22.5 mm
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 %24 V DC - 20...20 %
- Package Weight(Lbs)
- 298.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local SignallingLED green power power ON, LED red error error, LED yellow state statusLED yellow start1 start input, LED yellow start2 start input
Safety Reliability DataPFHd = 0.95E-09 for normally open relay contact IEC 62061, PFHd = 0.95E-09 for normally open relay contact IEC 61508-1, SFF > 99% for normally open relay contact IEC 61508-1PFHd = 0.95E-09 for normally closed relay contact ISO 13849-1PFHd = 0.95E-09 for normally closed relay contact IEC 62061HFT=0 for normally closed relay contact IEC 61508-1, PFHd = 0.95E-09 for normally closed relay contact IEC 61508-1, SFF > 60% for normally closed relay contact IEC 61508-1, type = B for normally closed relay contact IEC 61508-1MTTFd > 30 years for normally open relay contact ISO 13849-1, Dcavg >= 99 % for normally open relay contact ISO 13849-1, PFHd = 0.95E-09 for normally open relay contact ISO 13849-1HFT = 1 for normally open relay contact IEC 62061, SFF > 99% for normally open relay contact IEC 62061, HFT = 1 for normally open relay contact IEC 61508-1, type = B for normally open relay contact IEC 61508-1, MTTFd > 30 years for normally closed relay contact ISO 13849-1, DC > 60 % for normally closed relay contact ISO 13849-1, HFT=0 for normally closed relay contact IEC 62061, SFF > 60% for normally closed relay contact IEC 62061
[Ie] Rated Operational Current3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
Carbon Footprint Of The Distribution Phase [A4]0.13969377603029492, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.010761674675427399, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]48 kg CO2 eq., 48.426620565160576
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2110
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
Mounting Support35 mm symmetrical DIN rail
Power Consumption In W1.5 W 24 V DC
Product Or Component Typesafety module
Response Time150 ms at 24 V AC80 ms at 24 V DC
Safety Module Applicationfor emergency stop and protective guard applications
Software Versionv6.2.2
Terminal Identifierpower supply
Type Of Startautomatic/manual/monitored
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current6 A
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1811003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint54.57803844536821
Environmental DisclosureENVPEP1811003EN
Ip Degree Of ProtectionIP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Number Of Outputs
- 0
Minimum Output Voltage5 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850
- Number Of Inputs
- 0
Input Protection Typeinternal, electronic
Synchronisation Time Between Inputsunlimited
