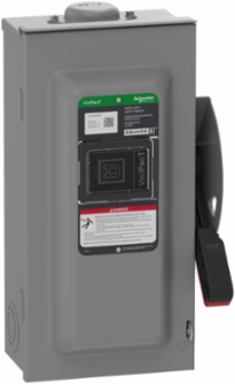

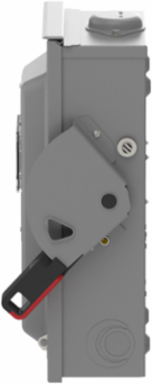

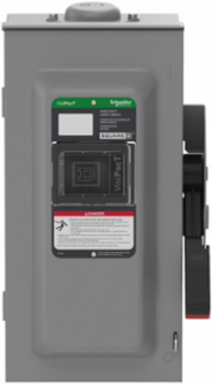

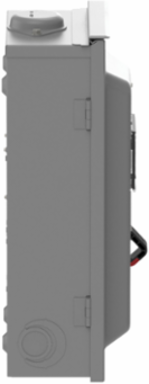

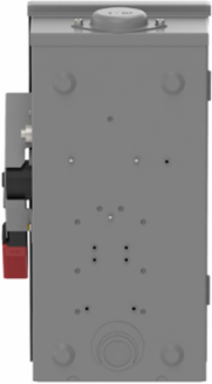

Square D VH362NRB Heavy Duty Safety Switch, 3 Pole, 60A, 600V, NEMA 3R
- MPN: VH362NRB
- PPN: SCH-VH362NRB
CAD
$1654.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The VH362NRB Heavy Duty Safety Switch from Schneider Electric is an essential component for ensuring reliable power distribution in various applications. With its robust 3-pole configuration and a capacity of 60 amps at 600 volts, this switch is designed to handle demanding environments while providing enhanced safety features. Built in accordance with NEMA 3R standards, it is specifically suited for outdoor or wet locations, making it ideal for both industrial and commercial settings where durability and performance are paramount. Trust this safety switch to facilitate safe disconnections, helping safeguard your electrical systems effectively.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J
- Number of Poles
- 3
- Device Application
- Heavy duty
- Depth
- 7.038 in
- Height
- 18.456 in
- Mounting Type
- Surface
- Wiring Configuration
- 4-wire (3P + N)
- Tightening Torque
- 40 to 50 lbf.in depending on wire size
- Factory Installed Neutral
- Neutral (factory installed)
- Certifications
- UL Listed E2875
- Reach Free of SVHC
- Yes
- Environmental Disclosure
- ENVPEP2303036EN
Current Rating60 A
Fuse TypeH or K; R or J
Disconnector Device TypeFusible disconnect
Motor Power15 Hp at 480 V AC; 30 Hp at 480 V AC; 15 Hp at 600 V AC; 50 Hp at 600 V AC; 30 Hp at 600 V DC
Width9.08 in
Net Weight8 kg (17.64 lb)
Electrical ConnectionLugs
Wire SizeAWG 14 to AWG 3 copper; AWG 12 to AWG 3 aluminum
Enclosure RatingNEMA 3R galvannealed steel
Service EntranceSuitable for USA and Mexico
China RoHS RegulationX
EU RoHS DirectiveCompliant
Country of OriginUS
