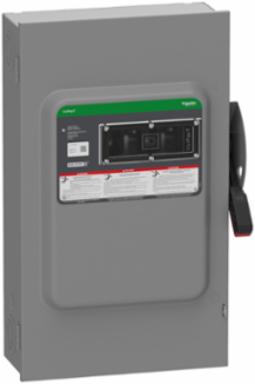

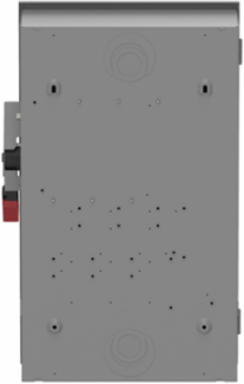

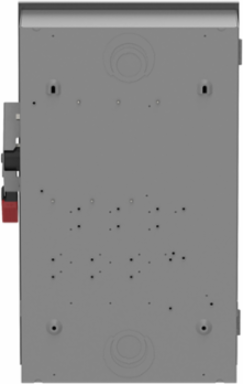

Square D VHU364GL Heavy Duty Safety Switch, 600V, 200A, 3 Pole, NEMA 1, 16.61 Inch Width
- MPN: VHU364GL
- PPN: SCH-VHU364GL
CAD
$974.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's heavy-duty safety switch offers robust performance for a range of industrial applications, ensuring dependable operation at 600 volts with a 200 amp capacity. Designed with three poles, this switch is crafted to meet the stringent demands of safety and connectivity within automation systems. Its NEMA 1 rating indicates suitability for indoor use, making it an ideal choice for various environments requiring reliable protection and easy access. With a width of 16.61 inches, this switch not only provides substantial electrical control but also integrates seamlessly into existing setups, reinforcing operational safety and efficiency.
Features

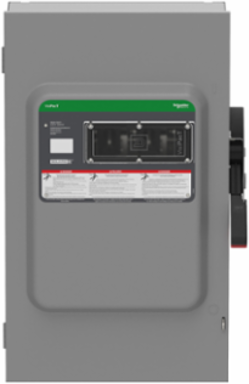

- Equipped with a built-in, impact-resistant VisiPacT viewing window, this heavy-duty disconnect allows technicians to instantly confirm the physical position of the switch blades without opening the enclosure door. This critical safety feature dramatically reduces the risk of dangerous arc flash exposure and accelerates routine Lockout/Tagout (LOTO) procedures for facility maintenance crews.
- Rated for a massive 200 Amps at up to 600V AC/DC, this 3-pole non-fusible safety switch is engineered to handle massive electrical loads, safely disconnecting motors up to 150 HP. It utilizes a highly reliable quick-make, quick-break operating mechanism that prevents electrical arcing during switching, extending the life of your commercial electrical distribution infrastructure.

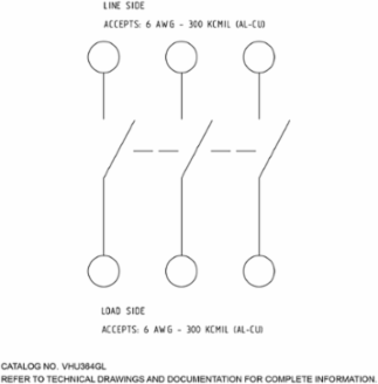

- Housed in a rugged, surface-mounted NEMA 1 steel enclosure, this unit provides robust mechanical protection against physical impacts and settling dust in indoor commercial settings. To streamline your retrofitting or panel-building process, it comes equipped with factory-installed ground lugs that easily accept AWG 6 to 250 kcmil copper or aluminum wiring for a secure, code-compliant earth connection.
- Designed for grueling industrial applications, this Schneider Electric Square D switch is rigorously factory-tested to deliver a mechanical endurance three times greater than standard NEMA requirements. By significantly outlasting standard commercial disconnects, it eliminates the frustration of frequent hardware replacements, minimizes expensive facility downtime, and ensures your system remains fully UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.6 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 50 hp at 600 V DC, 15 hp at 240 V AC 50/60 Hz for 1 phase motors60 hp at 240 V AC 50/60 Hz for 3 phase motors50 hp at 480 V AC 50/60 Hz for 1 phase motors, 125 hp at 480 V AC 50/60 Hz for 3 phase motors, 50 hp at 600 V AC 50/60 Hz for 1 phase motors, 150 hp at 600 V AC 50/60 Hz for 3 phase motors, 40 hp at 250 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 59 kg CO2 eq., 59.424207170592375 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 145 kg CO2 eq., 144.9134911837968 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...250 kcmil copper or aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil) |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 16.61 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 24.7 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 7.456202633548866, 7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.38535143792524496, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.54437565158782 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 272 kg CO2 eq. |
| Pep Code | ENVPEP2303037EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 28.93 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 271.72362807745105 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303037EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303037EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
