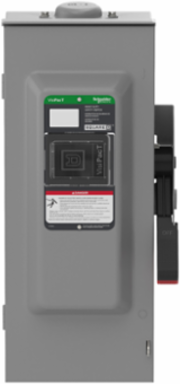

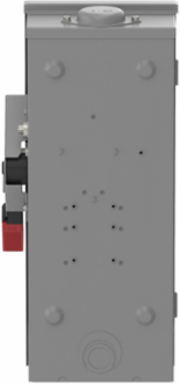

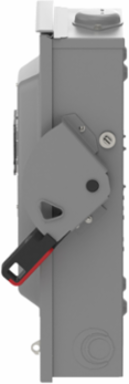

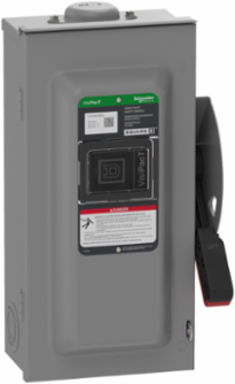

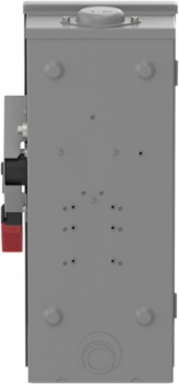

Square D VHU363RBGL Heavy Duty Safety Switch, 3 Pole, 100A, NEMA 3R, 600V, 22.103 Inch Height
- MPN: VHU363RBGL
- PPN: SCH-VHU363RBGL
CAD
$834.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty safety switch from Schneider Electric is engineered to provide robust power distribution solutions within industrial settings. Featuring a three-pole configuration with a 100A current rating, it ensures reliable operation up to 600V, catering to high-demand applications. Designed with NEMA 3R standards, it offers enhanced protection against rain and dust, making it suitable for outdoor environments. Its compact height of 22.103 inches allows for efficient installation in tight spaces while maintaining ease of access for operation and maintenance. This switch is an essential component for ensuring safety and operational efficiency in your electrical systems.
Features
- Housed in a heavy-duty, galvanized steel NEMA 3R enclosure with a baked enamel finish, this 100-Amp safety switch is purpose-built to withstand rain, sleet, and external ice formation. It is the ideal solution for outdoor machinery, rooftop HVAC units, and irrigation pumps, ensuring long-term corrosion resistance and uninterrupted power in harsh environmental conditions.
- Designed for high-demand applications, this 3-pole, 3-wire switch is rated for 600V AC/DC and up to 75 HP at maximum voltage. It features a high-performance quick-make, quick-break operating mechanism that snaps the contacts open or shut instantly, suppressing dangerous electrical arcs and extending the service life of your industrial power distribution system.
- This "GL" designated model comes factory-installed with a dedicated grounding lug, saving you the additional expense and labor of sourcing and mounting separate hardware. This integrated feature streamlines the wiring process for commercial electricians, ensuring a low-impedance path to ground that meets strict NEC safety requirements and protects personnel from electrical faults.
- eaturing Schneider s signature visible blade design, this heavy-duty disconnect allows for a direct visual confirmation that the circuit is open when the handle is in the "OFF" position. This critical safety redundant feature provides peace of mind for maintenance crews performing Lockout/Tagout (LOTO) procedures, significantly reducing the risk of accidental contact with live power.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

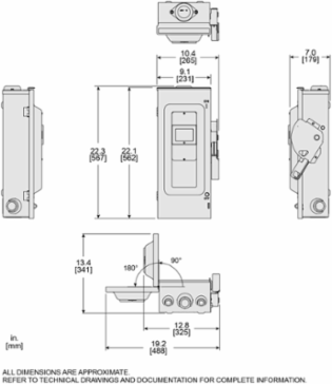

| Depth | 7.019 in |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 20 hp at 240 V AC 50/60 Hz for 1 phase motors40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 75 hp at 480 V AC 50/60 Hz for 3 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors20 hp at 250 V DC, 50 hp at 600 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.594268116258045, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.30579078982025976, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 30.34737347722995 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 9.08 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 9 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 21 kg CO2 eq., 20.7310951073816 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 53 kg CO2 eq., 52.820043208260074 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 107 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 22.103 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 106.79857069894993 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
