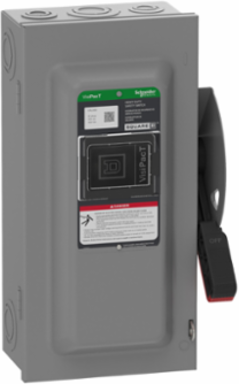

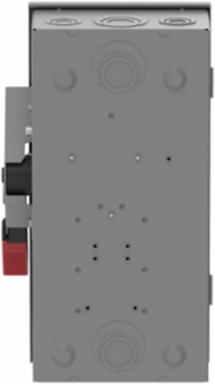

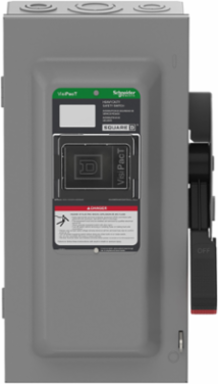

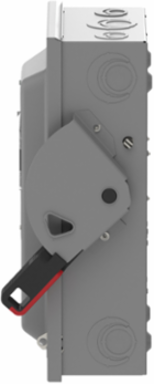

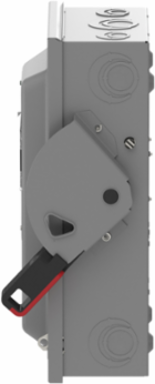

Square D VHU362 Heavy Duty Safety Switch 60A 600V NEMA 1 3 Pole 8.91 Inch Width
- MPN: VHU362
- PPN: SCH-VHU362
CAD
$272.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Heavy Duty Safety Switch from Schneider Electric is engineered for robust performance in demanding environments, providing reliable disconnect capabilities for electrical circuits. With a current rating of 60A and a voltage capacity of 600V, this safety switch is designed for efficient operation and superior safety in industrial applications. Featuring a compact design at 8.91 inches in width and compliant with NEMA 1 standards, it is suitable for indoor use, ensuring dependable protection against electrical faults while maintaining ease of access for maintenance and operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth7.04 in
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 30 hp at 600 V DC, 10 hp at 240 V AC 50/60 Hz for 1 phase motors20 hp at 240 V AC 50/60 Hz for 3 phase motors25 hp at 480 V AC 50/60 Hz for 1 phase motors, 50 hp at 480 V AC 50/60 Hz for 3 phase motors30 hp at 600 V AC 50/60 Hz for 1 phase motors, 60 hp at 600 V AC 50/60 Hz for 3 phase motors10 hp at 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 2.3060161033404847, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.27181403539578647, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 11 kg CO2 eq., 10.925054451802781
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Services
- field installed kit available
- Sustainable Packaging
- Yes
- Wiring Configuration
- 3-wire
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 83

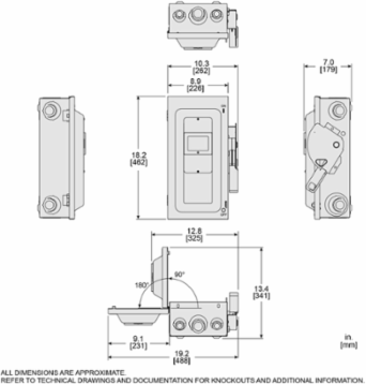

- Width Nominal
- 8.91 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Package Weight(Lbs)
- 6.690 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Tightening Torque50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]18 kg CO2 eq., 18.42764009545031
Carbon Footprint Of The Manufacturing Phase [A1 To A3]47 kg CO2 eq., 46.9511495184534
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2530
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge14 AWG...3 AWG copper12 AWG...3 AWG aluminium
Device Compositionfield installed kit available
Electrical Connectionlugs
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Software Versionv5.9.4
Total Lifecycle Carbon Footprint79 kg CO2 eq.
Pep CodeENVPEP2303036EN
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal18.184 in
Certificate AgencyUL listed file E2875
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 78.88167420444276
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303036EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303036EN
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
