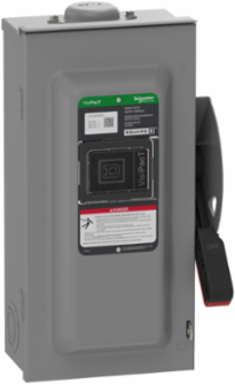

Square D VHU362RBGL Heavy Duty Safety Switch 3 Pole 60A 600V NEMA 3R
- MPN: VHU362RBGL
- PPN: SCH-VHU362RBGL
CAD
$520.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's heavy-duty safety switch is engineered for robust performance, offering secure disconnection in power distribution applications. With a reliable 60A capacity and the ability to handle up to 600V, this three-pole switch ensures safety and efficiency in both indoor and outdoor settings, thanks to its NEMA 3R rating. Ideal for industrial environments, it provides peace of mind by effectively managing electrical loads while safeguarding equipment and personnel.
Features
- The VHU362RBGL is a 60A, 600V AC/DC heavy-duty safety switch engineered to handle high-stress inductive loads and frequent switching cycles. This ensures your critical machinery such as industrial pumps, compressors, or HVAC units operates with a high-performance disconnect that minimizes wear and prevents premature equipment failure.
- Housed in a galvanized steel NEMA 3R enclosure with a baked enamel finish, this disconnect is specifically designed to resist rain, sleet, and external ice formation. It provides the ultimate protection for your electrical terminations against corrosion and environmental damage, making it the ideal choice for rooftop installations or exterior industrial pads.
- This specific model comes factory-installed with a dedicated ground bar (denoted by the "GL" suffix), eliminating the need to purchase and install separate grounding kits. This "ready-to-wire" configuration saves contractors significant time on the job site while ensuring a low-resistance path to ground for maximum personnel safety.
- Designed as a 3-pole fused safety switch, it accepts high-interrupting fuses to protect your downstream equipment from overcurrent damage. This flexible fuse compatibility allows you to tailor your short-circuit current rating (SCCR) to match your facility's specific safety requirements, preventing costly damage to expensive industrial controllers.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 7.038 in |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 30 hp at 600 V DC, 10 hp at 240 V AC 50/60 Hz for 1 phase motors20 hp at 240 V AC 50/60 Hz for 3 phase motors25 hp at 480 V AC 50/60 Hz for 1 phase motors, 50 hp at 480 V AC 50/60 Hz for 3 phase motors30 hp at 600 V AC 50/60 Hz for 1 phase motors, 60 hp at 600 V AC 50/60 Hz for 3 phase motors10 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.3060161033404847, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.27181403539578647, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 11 kg CO2 eq., 10.925054451802781 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2356 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper12 AWG...3 AWG aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 79 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |

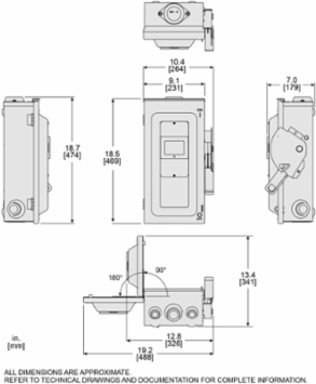

| Height Nominal | 18.456 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 18 kg CO2 eq., 18.42764009545031 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 47 kg CO2 eq., 46.9511495184534 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 9.08 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 8 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Carbon Footprint | 78.88167420444276 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
