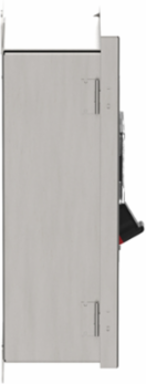

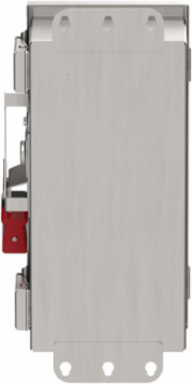

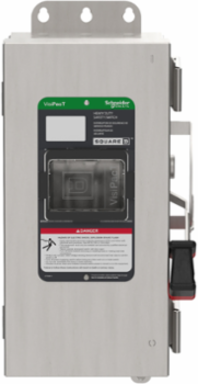

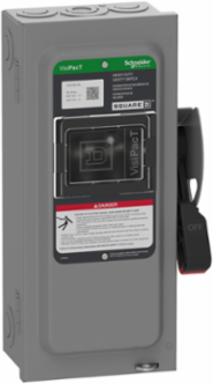

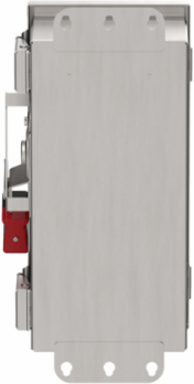

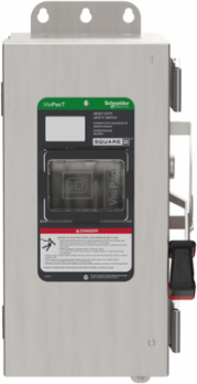

Square D VHU361GL Heavy Duty Safety Switch, 600V, 30A, 3 Pole, NEMA 1, 14.57 Inch Height
- MPN: VHU361GL
- PPN: SCH-VHU361GL
CAD
$240.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance and user safety, this heavy-duty safety switch from Schneider Electric is designed to handle demanding electrical applications. Rated at 600V and 30A, the three-pole configuration ensures reliable control and protection for your systems. Its compact design, with a height of 14.57 inches, makes it suitable for a variety of installations while conforming to NEMA 1 standards, which provide a level of protection against dust and indirect water contact. Ideal for industrial environments, this safety switch plays a crucial role in safeguarding equipment and personnel.
Features
- The Schneider Square D VHU361GL is a 30-Amp, 3-pole, 600V AC non-fusible safety switch from the high-performance Visi-Pac line. It serves as a rugged manual disconnect for three-phase motors and industrial machinery, providing a visible and reliable way to interrupt power during maintenance or emergency stops.
- As a non-fusible disconnect, this unit is designed to provide a local physical break in the circuit rather than overcurrent protection (which is handled by the upstream breaker or fuses). This makes it a more compact and cost-effective solution for Canadian industrial sites where circuit protection is already centralized in a main distribution panel.
- The VHU361GL is housed in a NEMA Type 1 (Indoor) enclosure, finished with the classic Square D gray polyester powder coat. It is specifically designed for indoor commercial and industrial environments where protection against dust and accidental contact is required, but exposure to moisture or rain is not a factor.

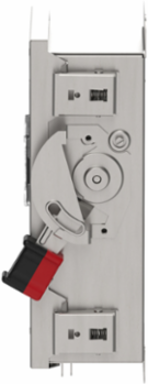

- This switch features visible blades, allowing safety inspectors and maintenance personnel to verify at a glance that the circuit is physically open. The high-contrast red handle is designed for ergonomic operation and is padlockable in the "OFF" position, meeting the strict lockout-tagout (LOTO) requirements of CSA Z462.
- The "GL" designation indicates that this unit comes factory-equipped with a pre-installed ground lug. This simplifies the installation process for Canadian contractors by providing a dedicated, code-compliant bonding point right out of the box, ensuring the metal enclosure is safely grounded according to CEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5.11 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 5 hp at 240 V AC 50/60 Hz for 1 phase motors10 hp at 240 V AC 50/60 Hz for 3 phase motors7.5 hp at 480 V AC 50/60 Hz for 1 phase motors, 20 hp at 480 V AC 50/60 Hz for 3 phase motors, 10 hp at 600 V AC 50/60 Hz for 1 phase motors, 30 hp at 600 V AC 50/60 Hz for 3 phase motors5 hp at 250 V DC, 15 hp at 600 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1530080516702423, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.13590701769789323, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.248016280353195
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- non-fusible disconnect
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 37 kg CO2 eq.
- Pep Code
- ENVPEP2303036EN
- Pep Verification Date
- 2023-10-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US

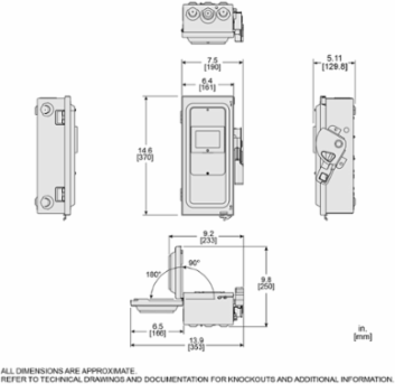

- Height Nominal
- 14.57 in
- Certificate Agency
- UL listed file E2875
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Tightening Torque45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]9 kg CO2 eq., 9.213820047725156
Carbon Footprint Of The Manufacturing Phase [A1 To A3]23 kg CO2 eq., 23.4755747592267
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2530
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge12 AWG...6 AWG aluminium14 AWG...6 AWG copper
Device Compositionfield installed kit available
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Servicesfactory installation
Sustainable PackagingYes
Wiring Configuration3-wire
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %83
Width Nominal6.36 in
[Ue] Rated Operational Voltage600 V AC/DC
Package Weight(Lbs)4 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 37.22632615667318
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303036EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303036EN
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
