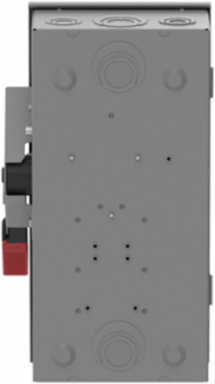

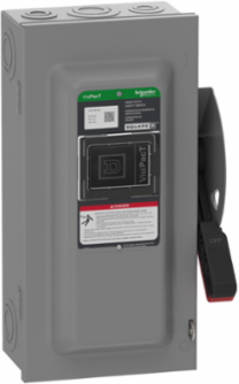

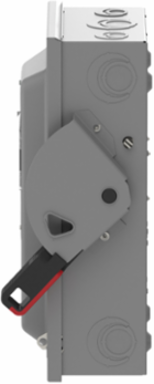

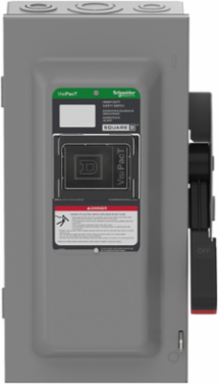

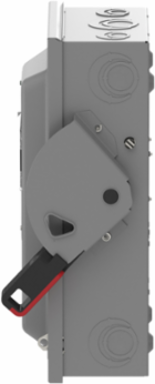

Square D VHU362GL Heavy Duty Unfused Safety Switch, 600V, 60A, NEMA 1, 3 Pole
- MPN: VHU362GL
- PPN: SCH-VHU362GL
CAD
$272.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance in industrial applications, this heavy-duty unfused safety switch from Schneider Electric offers reliable operation up to 600V and 60A, ensuring safe and efficient management of electrical circuits. Its NEMA 1 enclosure provides an ideal solution for indoor environments, combining both safety and convenience while facilitating seamless connectivity. With three poles, this switch is designed to meet the demands of diverse automation and control needs, making it an essential component for ensuring safe electrical distribution in various settings.
Features
- 3-Pole, 600V Heavy Duty Disconnect: Built for the Toughest Environments The Schneider Electric (Square D) VHU362GL is a 60-Amp, 3-pole, non-fusible safety switch. Part of the Spec-SetTM or heavy-duty line, it is engineered for industrial applications where frequent operation and high reliability are non-negotiable. It provides a visible, lockable means of disconnecting power to 3-phase motors and machinery in Canadian industrial plants.
- Housed in a NEMA Type 3R galvanized steel enclosure, this switch is designed for both indoor and outdoor use. It provides a high degree of protection against rain, sleet, and external ice formation. This makes it an ideal choice for Canadian rooftop HVAC units, pumping stations, and exterior industrial equipment where exposure to the elements is expected.
- As a non-fusible switch, the VHU362GL does not contain fuse clips. Its primary purpose is to provide a manual "on/off" point and a physical break in the circuit for maintenance safety. It relies on the upstream circuit breaker for overcurrent protection, allowing for a more compact enclosure design while still meeting CEC (Canadian Electrical Code) requirements for a local disconnect.
- The "GL" suffix indicates that this unit comes with factory-installed ground and neutral lugs. This is a significant time-saver for Canadian contractors, as it eliminates the need to purchase and install separate lug kits in the field. It ensures that the equipment grounding and bonding requirements are met immediately upon installation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

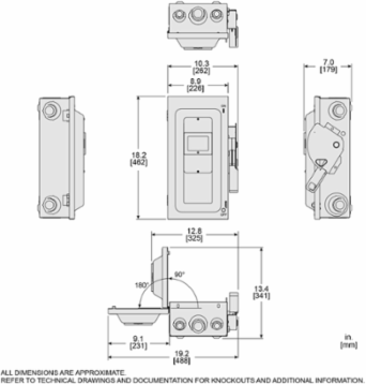

| Depth | 7.04 in |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 30 hp at 600 V DC, 10 hp at 240 V AC 50/60 Hz for 1 phase motors20 hp at 240 V AC 50/60 Hz for 3 phase motors25 hp at 480 V AC 50/60 Hz for 1 phase motors, 50 hp at 480 V AC 50/60 Hz for 3 phase motors30 hp at 600 V AC 50/60 Hz for 1 phase motors, 60 hp at 600 V AC 50/60 Hz for 3 phase motors10 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.3060161033404847, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.27181403539578647, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 11 kg CO2 eq., 10.925054451802781 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2349 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper12 AWG...3 AWG aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 79 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 18.184 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 18 kg CO2 eq., 18.42764009545031 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 47 kg CO2 eq., 46.9511495184534 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 8.91 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 8 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Carbon Footprint | 78.88167420444276 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
